Product Summary
The IC41LV16256-50T is a 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memory. The IC41LV16256-50T offers an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 512 random accesses within a single row with access cycle time as short as 10 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes the IC41C16256 ideal for use in 16-, 32-bit wide data bus systems. These features make the IIC41LV16256-50T ideally suited for high-bandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.
Parametrics
IC41LV16256-50T absolute maximum ratings: (1)VT Voltage on Any Pin Relative to GND 5V: –1.0 to +7.0 V; (2)VCC Supply Voltage 5V: –1.0 to +7.0 V; (3)IOUT Output Current: 50 mA; (4)PD Power Dissipation: 1 W; (5)TA Commercial Operation Temperature: 0 to +70 ℃; (6)Industrial Operationg Temperature: –40 to +85 ℃; (7)TSTG Storage Temperature: –55 to +125 ℃.
Features
IC41LV16256-50T features: (1)Extended Data-Out (EDO) Page Mode access cycle; (2)TTL compatible inputs and outputs; tristate I/O; (3)Refresh Interval: 512 cycles /8 ms; (4)Refresh Mode: RAS-Only, CAS-before-RAS (CBR), Hidden; (5)Single power supply; (6)5V ±10% (IC41C16256); (7)Byte Write and Byte Read operation via two CAS; (8)Industrail Temperature Range -40℃ to 85℃; (9)Pb-free package is available.

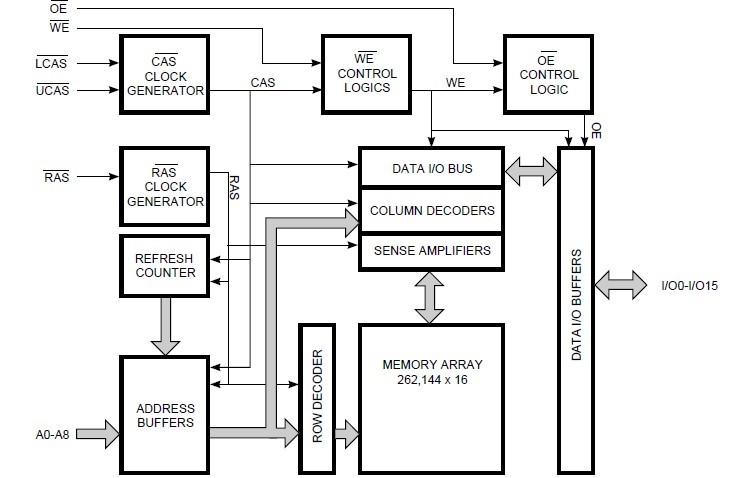

Diagrams
