Product Summary

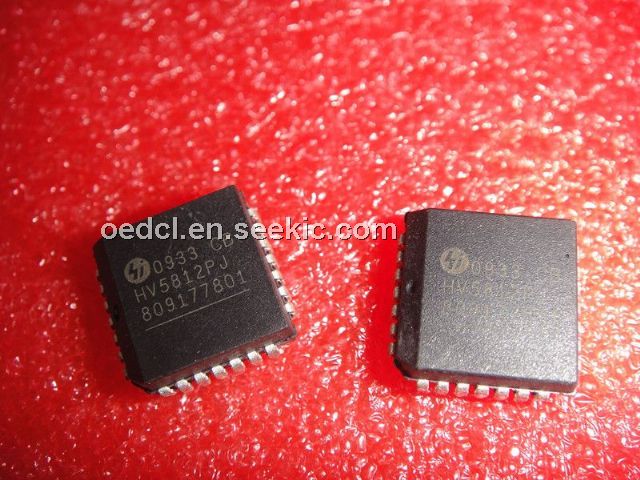

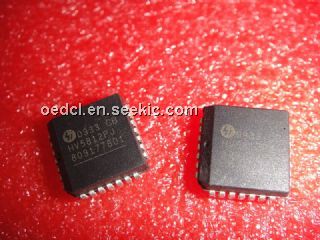

The HV5812PJ is a 20-channel serial input vacuum fluorescent display driver. It combines a 20-bit CMOS shift register, data latches, and control circuitry with high voltage MOSFET outputs. The HV5812PJ is primarily designed for vacuum-fluorescent displays. The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. Data input rates are typically over 5.0MHz with 5V logic supply. Especially useful for inter-digit blanking, the BLANKING input of the HV5812PJ disables the output source drives and turns on the sink drivers. Use with TTL may require external pull-up resistors to ensure an input logic high.

Parametrics

HV5812PJ absolute maximum ratings: (1)VDD logic power supply voltage: -0.5V to +7.5V; (2)VPP positive high voltage supply: -0.5V to +90V; (3)Logic input voltages: -0.3V to VDD +0.3V; (4)Operating junction temperature range: -40℃ to +150℃; (5)Storage temperature: -55℃ to +150℃; (6)Power dissipation(28-pin PLCC): 1.9 Watt; (7)Power dissipation(SOW-280): 1.7 Watt; (8)Power dissipation(28-pin DIP): 2.0 Watt.

Features

HV5812PJ features: (1)Operating voltage of to up to 80V; (2)HVCMOS technology for high performance; (3)High speed source driver; (4)Up to 3.3MHz data input rate; (5)5.0V CMOS logic circuitry; (6)Excellent noise immunity; (7)Flexible high voltage supplies.

Diagrams

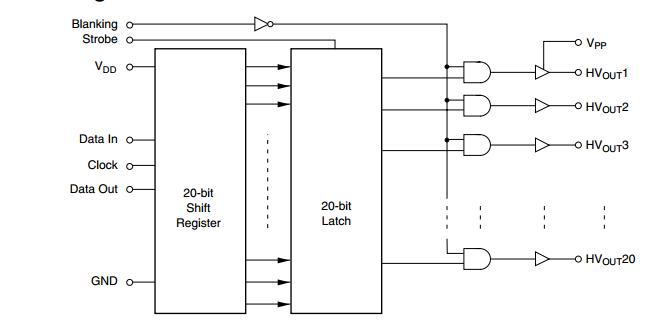

HV5812PJ Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HV5812PJ
HV5812PJ
Supertex
Display Drivers & Controllers 80V 20Ch
Data Sheet
Negotiable
HV5812PJ-G
HV5812PJ-G
Supertex
Display Drivers & Controllers 80V 20Ch
Data Sheet
0-1: $1.73
1-100: $1.44
100-500: $1.33
500-1000: $1.28
HV5812PJ-M911
HV5812PJ-M911
Supertex
Display Drivers & Controllers 80V 20Ch
Data Sheet
Negotiable
