Product Summary

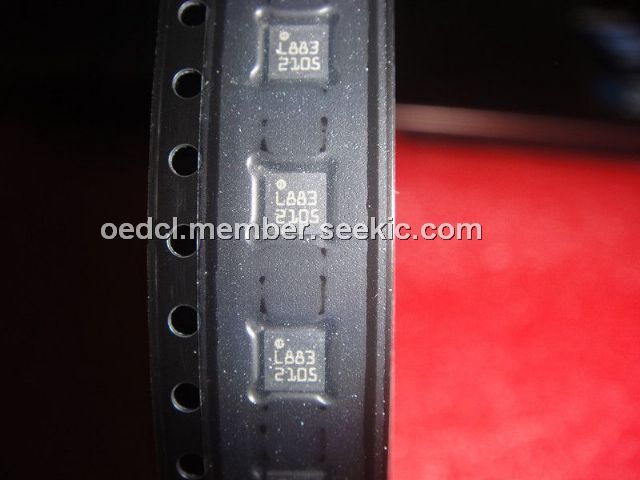

The HMC5883L is a surface-mount, multi-chip module designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry. The HMC5883L includes our state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1℃ to 2℃ compass heading accuracy. The HMC5883L is a 3.0x3.0x0.9mm surface mount 16-pin leadless chip carrier (LCC).
Parametrics
HMC5883L absolute maximum ratings: (1)Supply Voltage VDD: -0.3 to 4.8 Volts; (2)Supply Voltage VDDIO: -0.3 to 4.8 Volts.
Features
HMC5883L features: (1)Three-Axis Magnetoresistive Sensors and ASIC in a 3.0x3.0x0.9mm LCC Surface Mount Package; (2)12-Bit ADC Coupled with Low Noise AMR Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields; (3)Built-In Self Test; (4)Low Voltage Operations (2.16 to 3.6V) and Low Power Consumption (100 μA); (5)Built-In Strap Drive Circuits; (6)Lead Free Package Construction; (7)Wide Magnetic Field Range (+/-8 Oe); (8)Software and Algorithm Support Available; (9)Fast 160 Hz Maximum Output Rate.

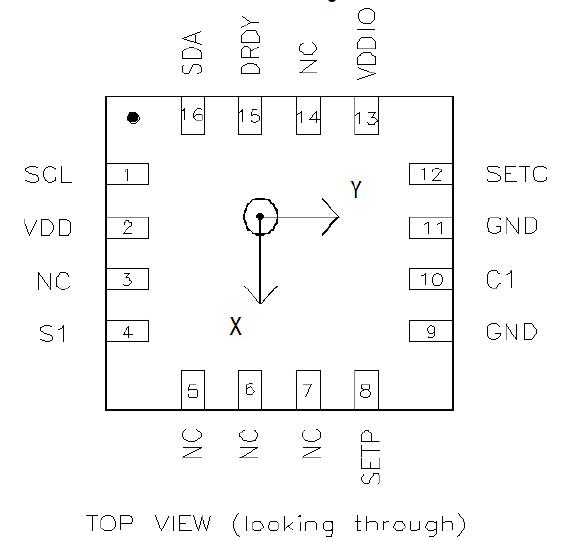

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMC5883L-DEMO |
|
IC COMPASS 3 AXIS I2C DEMO KIT |
Data Sheet |
|
|
||||||||
 |
HMC5883L-EVAL |
|
IC COMPASS 3 AXIS I2C EVAL BOARD |
Data Sheet |
|
|
||||||||
 |
HMC5883L-TR |
|
IC COMPASS 3 AXIS I2C 16LCC SMD |
Data Sheet |
|
|
||||||||
