Product Summary

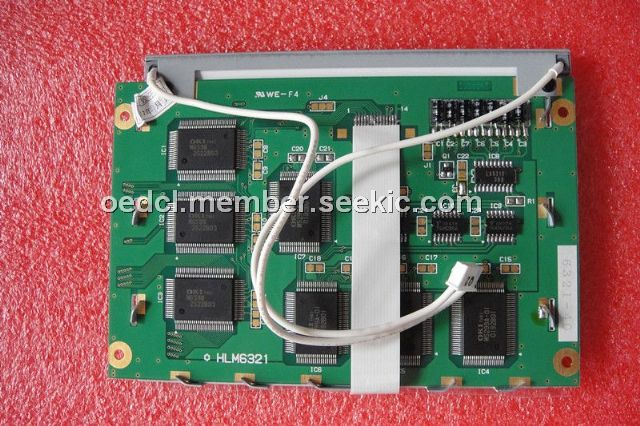

The HLM6321 is a 10 mA LCD Screen.

Parametrics

HLM6321 absolute maximum ratings: (1)Supply voltage logic VDD: 4.5 to 5.5 V; (2)Supply voltage LCD VEE: -24 V; (3)Current dissipation logic IDD: 4.3 12 mA; (4)Current dissipation LCD IEE: 3.1 10 mA; (5)Contrast ratio CR: 25; (6)Display Brightness B: 130 cd/m2; (7)Response time Rise tRISE: 200 260 ms; (8)Response time Fall tFALL: 150 200 ms; (9)Frame frequency f: 70 Hz; (10)Storage temperature TST: -20 +60 ℃.

Features

HLM6321 features: (1)F-STN monochrome LCD; (2)320 x 240 Resolution; (3)CCFL Lifetime (40.000h typ.).

Diagrams

<IMG border=0 alt="HLM6321 block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201291221552747.jpg">
