Product Summary

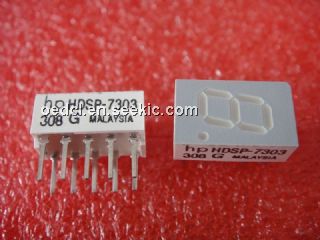

The HDSP-73303 is a display. The HDSP-73303 display has a 17.3 mm (0.68 inch) character height and use industry standard size and pin-out. The devices are available in either common row anode or common row cathode configurations. The displays come in either gray or black face paint and are available in a choice of high efficiency red (HER) or green colors or AlGaAs. It is deal for: (1)Suitable for Indoor Use; (2)Not Recommended for Industrial Applications, i.e. Operating Temperatures Requirements Exceeding 85°C or Below -35°C[1]; (3)Extreme Temperature Cycling Not Recommended[2].
Parametrics
HDSP-73303 absolute maximum ratings: (1)Average Power per Dot[1]: 75 mW; (2)Peak Forward Current per Dot[1,2]: 90 mA; (3)(1/10 Duty Cycle, 0.1 ms Pulse Width); (4)Average Forward Current per Dot[1]: 15[2] mA; (5)Reverse Voltage per Dot: 5 V; (6)Operating Temperature: –40 to +85 °C; (7)Storage Temperature: –40 to + 85 °C; (8)Wave Soldering Temperature for 3 seconds[3]: 250 °C.
Features
HDSP-73303 features: (1)5 x 7 Dot Matrix Font; (2)Viewable up to 12 Meters; (3)X-Y Stackable; (4)Industry Standard Pin-out; (5)Choice of Colors; (6)Choice of Face Paint Colors; (7)Design Flexibility; (8)Categorized for Luminous Intensity; (9)Green Categorized for Color.
Diagrams
