Product Summary
The HCPL2601 is a high cmr, high speed ttl compatible optocoupler. An enable input allows the HCPL2601 to be strobed. The output of the HCPL2601 is an open collector Schottkyclamped transistor. The HCPL2601 is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments.
Parametrics
HCPL2601 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 °C; (2)Operating Temperature: TA -40 to 85 °C; (3)Input Power Dissipation PI Widebody: 40 mW; (4)Supply Voltage VCC: 7 V; (5)Output Collector Current IO: 50 mA; (6)Output Collector Voltage VO: 7 V .
Features
HCPL2601 features: (1)5 kV/μs Minimum Common Mode Rejection (CMR)at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and; (2)10 kV/μs Minimum CMR at VCM = 1000 V for HCPLX611/ X661, HCNW2611; (3)High Speed: 10 MBd Typical; (4)LSTTL/TTL Compatible; (5)Low Input Current Capability: 5 mA; (6)Guaranteed ac and dc; (7)Performance over Temperature: -40°C to +85°C; (8)Available in 8-Pin DIP, SOIC-8, Widebody Packages; (9)Strobable Output (Single Channel Products Only); (10)MIL-PRF-38534 Hermetic Version Available (HCPL- 56XX/66XX).

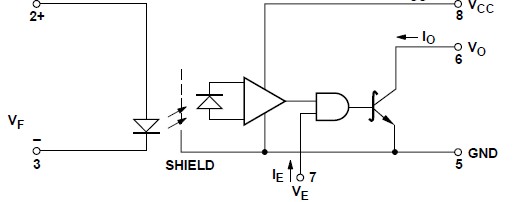

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

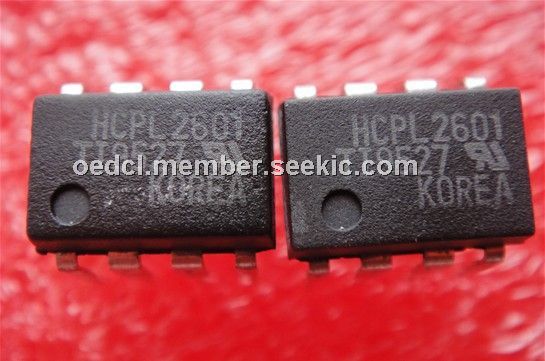

 HCPL2601 |
Fairchild Semiconductor |
High Speed Optocouplers DIP-8 HS LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
HCPL2601_Q |
Fairchild Semiconductor |
High Speed Optocouplers DIP-8 HS LOGIC GATE |
Data Sheet |
Negotiable |
|
||||||||||||
|
HCPL2601S |
Fairchild Semiconductor |
High Speed Optocouplers HS LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
HCPL2601SD |
Fairchild Semiconductor |
High Speed Optocouplers 10Mbit/s Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
|
HCPL2601SDV |
Fairchild Semiconductor |
High Speed Optocouplers 11 Mbit Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
|
HCPL2601M |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) H-SPEED LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
HCPL2601V |
Fairchild Semiconductor |
High Speed Optocouplers 13 Mbit Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
|
HCPL2601SV |
Fairchild Semiconductor |
High Speed Optocouplers 12 Mbit Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
