Product Summary

The HC245ASJ is an octal 3-state transceiver. The HC245ASJ is intended for two-way asynchronous communication between data buses. The HC245ASJ has high drive current outputs which enable high speed operation even when driving large bus capacitances. The HC245ASJ possesses the low power consumption and high noise immunity usually associated with CMOS circuitry, yet has speeds comparable to low power Schottky TTL circuits.

Parametrics

HC245ASJ absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage DIR and G pins (VIN): -1.5 to VCC+1.5V; (3)DC Input/Output Voltage (VIN, VOUT): 0.5 to VCC +0.5V; (4)Clamp Diode Current (ICD): ±20 mA; (5)DC Output Current, per pin (IOUT): ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65°C to +150°C; (8)Power Dissipation (PD): 600 mW; (9)S.O. Package only: 500 mW; (10)Lead Temperature (TL)(Soldering 10 seconds): 260°C.

Features

HC245ASJ features: (1)Typical propagation delay: 13 ns; (2)Wide power supply range: 2–6V; (3)Low quiescent current: 80 PA maximum (74 HC); (4)3-STATE outputs for connection to bus oriented systems; (5)High output drive: 6 mA (minimum); (6)Same as the 645.

Diagrams

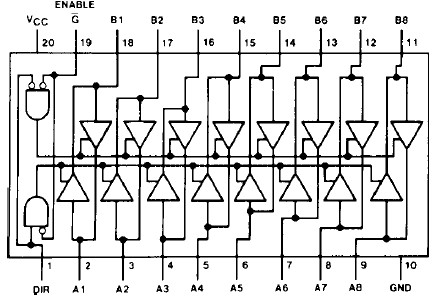

HC245ASJ pin connection
