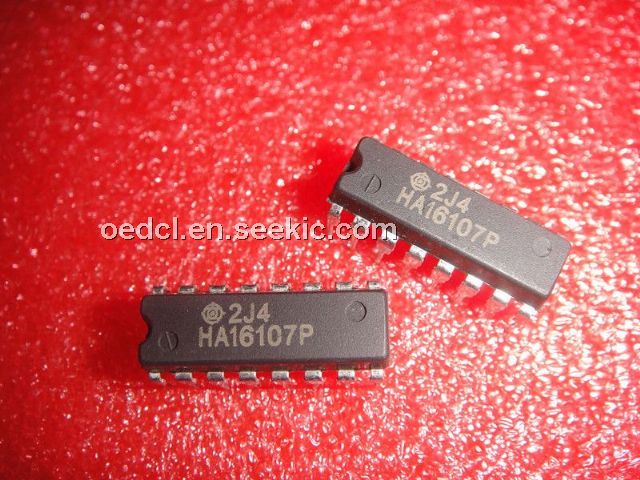

HA16107P

PWM switching regulator, 30V, ±2A, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.80 / Piece

PartNumber:: HA16107P

Brand:: Hitachi Ltd - Hitachi | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:HA16107P
US $0.80 - 1.00
Quantity:

piece

Product Summary

The ha16107p is a PWM switching regulator for high-performance voltage mode control. The ha16107p can directly drive power MOSFET, the ha16107p has a timer function built in to the secondary overcurrent protection, and the ha16107p can perform intermittent operation or delayed latched shutdown as protection operations in unusual conditions. The ha16107p can be used to implement switching power supplies with a high level of safety due to the wide range of built-in functionality.

Parametrics

ha16107p absolute maximum ratings: (1) Supply voltage VIN: 30V; (2) Output current (DC) Io: ±0.2A; (3) Output current (peak) Iopeak: ±2A; (4) Current limiter voltage VCL: +4, -1V; (5) Error amp input voltage VIEA: Vref; (6) RT1 pin current: 500μA; (7) Rt2 pin current, Irt2: 5mA; (8) Power dissipation Pt: 680mW; (9) Operating temperature range Topr: -20 to +85°C; (10) Storage temperature range Tstg: -55 to +125°C.

Features

ha16107p features: (1) Operating frequencies up to a high 600 kHz; (2) Built-in pre-driver circuit for driving power MOS FET; (3) Built-in timer latch over-current protection function; (4) The UVL function (under voltage lockout) is applied to both Vin and Vref; (5) ON/OFF reset: an auto-reset function which is based on the time constant of an external capacitor and observation of drops in Vin; (6) Since the over-voltage protection function OVP (the TL pin) only observes voltage drops in Vin, it is possible to use the OVP and ON/OFF pin for independent purposes; (7) Built-in 34 V Zener diode between Vin and ground.
