Product Summary
The h12wd4850 is a high voltage relay. The h12wd4850 uses IC driven circuits for switching loads up to 660VAC. The h12wd4850 comes with 1200 Volts blocking.
Parametrics
h12wd4850 absolute maximum ratings: (1) Max. Load Current: 50A; (2) Min. Load Current: 150mA; (3) Min. Load Current: 1200V; (4) Max. Surge Current, (16.6ms) : 625A; (5) Max. On-State Voltage Drop @ Rated Current: 1.6V; (6) Min. Off-State dv/dt @ Max. Rated Voltage: 500V/μs.
Features
h12wd4850 features: (1) 1200 Volt Blocking; (2) Panel Mount; (3) Up to 660 Vac; (4) Zero Voltage and Random Turn-On; (5) SCR Output; (6) Integrated Overvoltage Protection by Automatic Self Turn-On (Suffix P) .

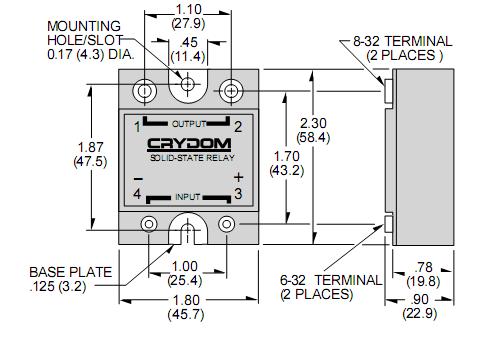

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

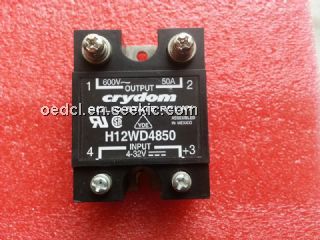

 H12WD4850 |
Crydom |
Solid State Relays 50A 660VAC DC |
Data Sheet |
|
|
||||||||||||
|
H12WD4850-10 |
Crydom |
Solid State Relays PM IP00 SSR, 660VAC 50A, DC In, RN |
Data Sheet |
|
|
||||||||||||
