Product Summary

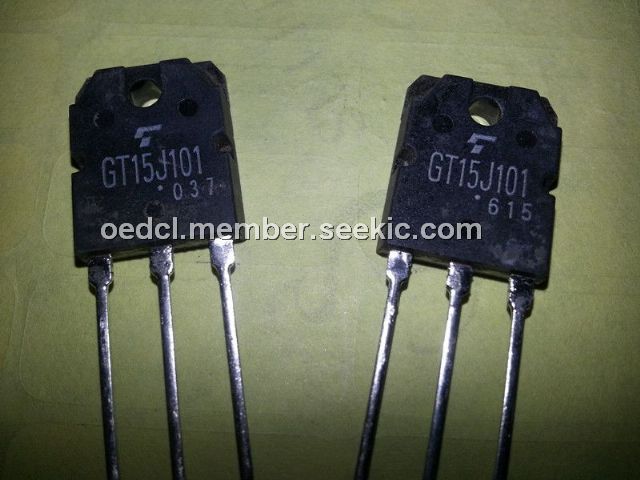

The GT15J101 is a silicon N-channel IGBT.
Parametrics
GT15J101 absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: ± 20 V; (3)Collector current DC: 15 A; (4)Collector current 1 ms: 30 A; (5)Collector power dissipation: 100 W; (6)Junction temperature: 150℃; (7)Storage temperature range: -55℃ to 150℃.
Features
GT15J101 features: (1)High input impedance; (2)High speed: tf = 0.35 μs; (3)Low saturation voltage: VCE(sat) = 4.0 V; (4)Enhancement-mode.

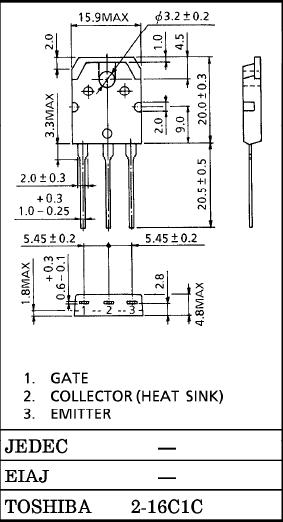

Diagrams
 |
