Product Summary

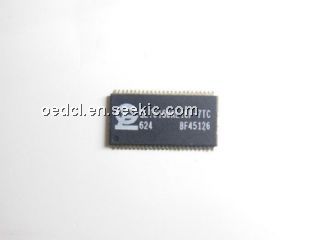

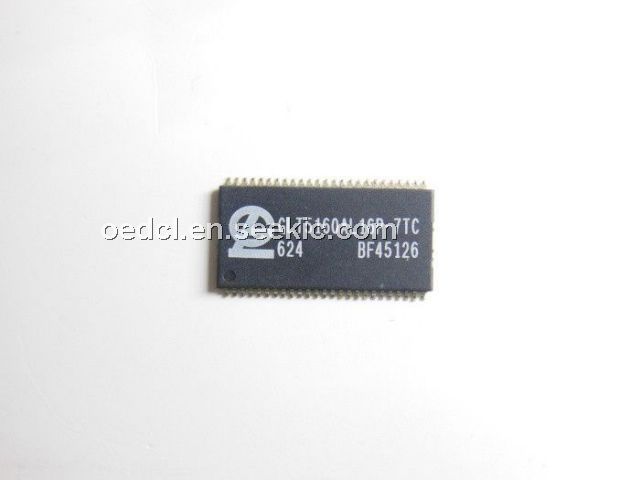

The GLT5160AL16P-7TC is a 2-bank×524288-word×16-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The GLT5160AL16P-7TC achieves very high speed data rate up to 166 MHz, and is suitable for main memory or graphic memory in computer systems.
Parametrics
GLT5160AL16P-7TC absolute maximum ratings: (1)Supply Voltage: -1.0V to 4.6V; (2)Supply Voltage for Output: -1.0V to 4.6V; (3)Output Current: 50mA; (4)Power Dissipation(TA=25℃): 1000mW; (5)Operating Temperature: 0℃ to 70℃; (6)Storage Temperature: -65℃ to 150℃.
Features
GLT5160AL16P-7TC features: (1)Single 3.3V ±0.3V power supply; (2)Clock frequency 100 MHz/125 MHz/143 MHz/166 MHz; (3)Fully synchronous operation referenced to clock rising edge; (4)Dual bank operation controlled by BA (Bank Address); (5)CAS latency- 2/3 (programmable); (6)Burst length- 1/2/4/8 & Full Page (programmable); (7)Burst type- sequential/interleave (programmable); (8)Industrial grade available; (9)Byte control by DQMU and DQML; (10)Column access-random; (11)400-mil, 50-Pin Thin Small Outline Package (TSOP II) with 0.8 mm lead pitch.
Diagrams
