Product Summary

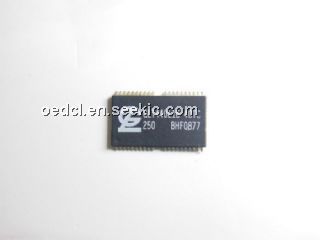

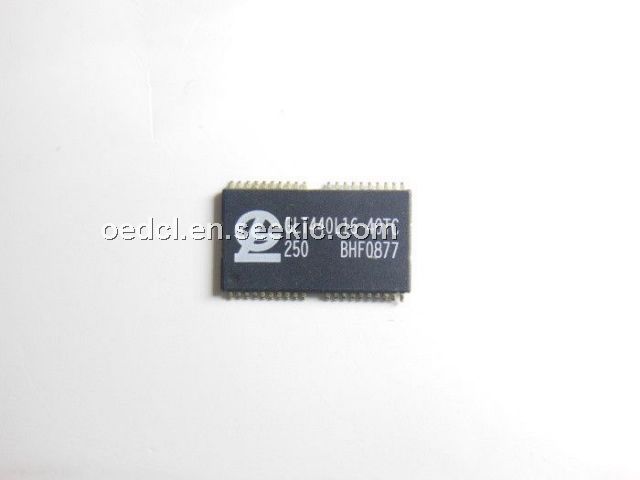

The GLT440L16-40TC is a 262,144 x 16 bit high-performance CMOS dynamic random access memory. The GLT44016-40TC offers Fast Page mode with Extended Data Output, and has both BYTE WRITE and WORD WRITE access cycles via two CAS pins. The GLT440L16-40TC has symmetric address and accepts 512-cycle refresh in 8ms interval. All inputs are TTL compatible. EDO
Page Mode operation allows random access up to 512 x 16 bits within a page, with cycle time as short as 14ns. The GLT440L16-40TC is best suited for graphics, and DSP applications requiring high performance memories.
Parametrics
GLT440L16-40TC absolute maximum ratings: 1)Operating Temperature, TA (ambient): -10℃ to +70℃; (2)Storage Temperature(plastic): -55℃ to +150℃; (3)Voltage Relative to VSS: -1.0V to + 4.6V; (4)Short Circuit Output Current: 50mA; (5)Power Dissipation: 1.0W.
Features
GLT440L16-40TC features: ((1)262,144 words by 16 bits organization; (2)Fast access time and cycle time; (3)Dual CAS Input; (4)Low power dissipation; (5)Available in 40-Pin 400 mil SOJ and 40/44 Pin TSOP(II); (6)Single +3.3V±10% Power Supply; (7)All inputs and Outputs are TTL compatible; (8)Extended Data-Out(EDO) Page Mode operation; (9)Self–refresh capability (S-Version).

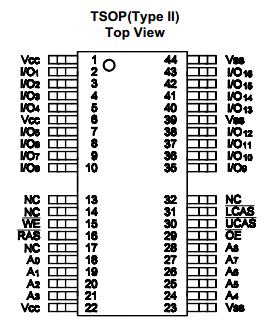

Diagrams
