Product Summary
The GLT440L16-35TC is a 262,144 x 16 bit high-performance CMOS dynamic random access memory. The GLT440L16-35TC offers fast page mode with extended data output, and has both byte write and word write access cycles via two CAS pins. The GLT440L16-35TC has symmetric address and accepts 512-cycle refresh in 8ms interval. All inputs are TTL compatible. EDO page mode operation allows random access up to 512 x 16 bits within a page, with cycle time as short as 14ns. The GLT440L16-35TC is best suited for graphics, and DSP applications requiring high performance memories.
Parametrics
GLT440L16-35TC absolute maximum ratings: (1)Operating temperature, TA (ambient): -10°C to +70°C; (2)Storage temperature(plastic): -55°C to +150°C; (3)Voltage relative to VSS:-1.0V to + 4.6V; (4)Short circuit output current: 50mA; (5)Power dissipation: 1.0W.
Features
GLT440L16-35TC features: (1)262,144 words by 16 bits organization; (2)Fast access time and cycle time; (3)Dual CAS Input; (4)Low power dissipation; (5)Read-modify-write, RAS-only refresh, CAS-before-RAS refresh, Hidden refresh and test mode capability; (6)512 refresh cycles per 8ms; (7)Available in 40-Pin 400 mil SOJ and 40/44 Pin TSOP(II); (8)Single +3.3V±10% Power Supply; (9)All inputs and Outputs are TTL compatible; (10)Extended data-out(EDO)Page mode operation.

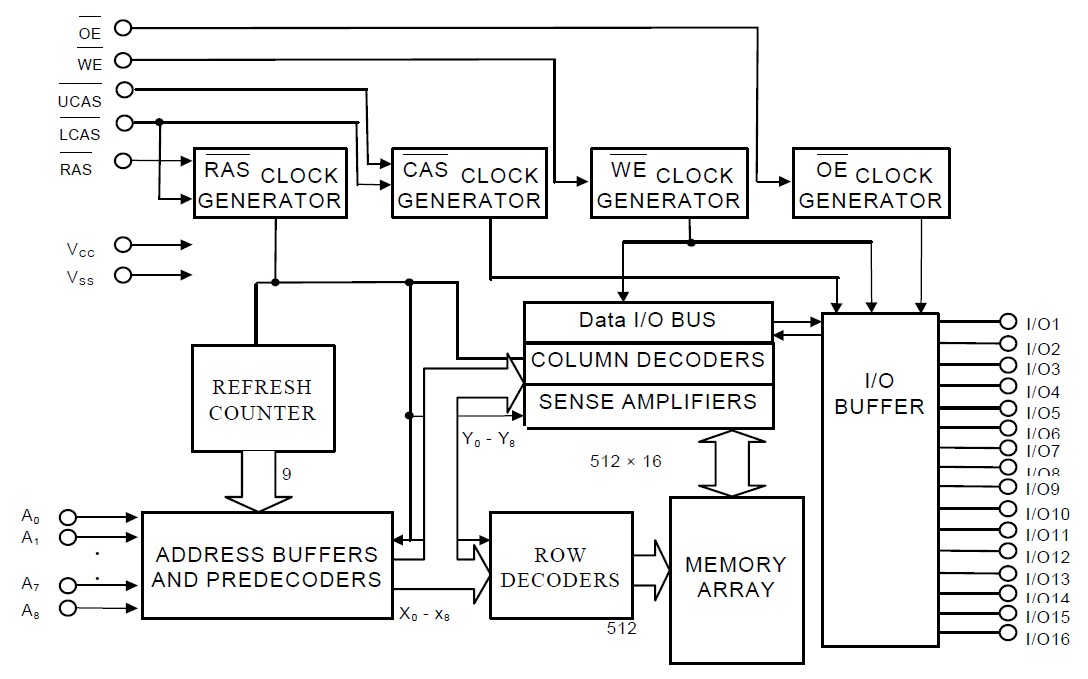

Diagrams
