Product Summary

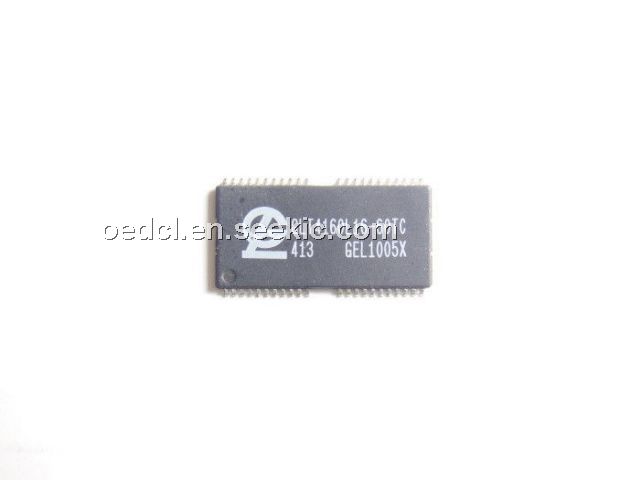

The GLT4160L16-60TC is a 1,048,576 x 16 bit high-performance CMOS dynamic random access memory. The GLT4160L16-60TC offers Fast Page mode with Extended Data Output, and has both BYTE WRITE and WORD WRITE access cycles via two CAS pins. The GLT4160L16-60TC has symmetric address and accepts 1024-cycle refresh in 16ms interval.
Parametrics
GLT4160L16-60TC absolute maximum ratings: (1)Operating Temperature, TA (ambient): 0℃ to +70℃; (2)Storage Temperature(plastic): -55℃ to +150℃; (3)Voltage Relative to VSS: -1.0V to + 4.6V; (4)Short Circuit Output Current: 50mA; (5)Power Dissipation: 1.0W.
Features
GLT4160L16-60TC features: (1)1,048,576 words by 16 bits organization; (2)Fast access time and cycle time; (3)Dual CAS Input; (4)Low power dissipation; (5)1024 refresh cycles per 16ms; (6)Available in 400 mil SOJ/TSOPII Packages; (7)Single 3.3V±0.3V Power Supply; (8)All inputs and Outputs are TTL compatible; (9)Extended Data-Out(EDO) Page Mode operation; (10)Self – refresh capability (S-Version).
Diagrams
