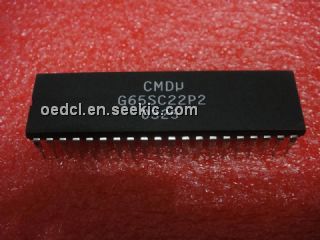

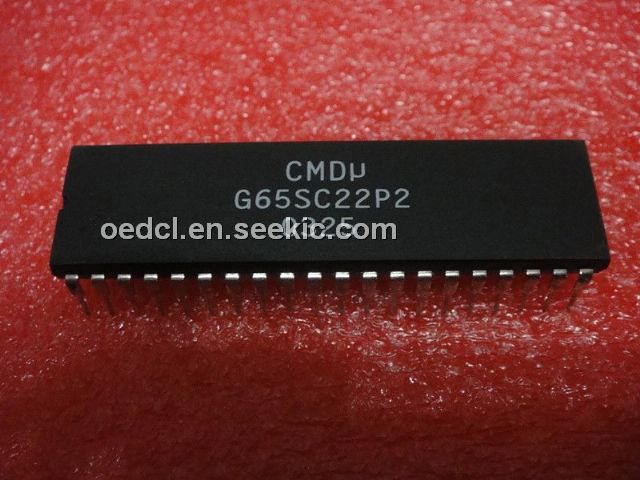

G65SC22P2

G65SC22P2, DIP, CMOS versatile interface adapter, -0.3 to 7V, 5V, California Micro Devices Corp

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.90~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	4.00 / Piece
6 ~ 10 :	3.90 / Piece

PartNumber:: G65SC22P2

Brand:: California Micro Devices Corp - CMD | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-08

From Other Seller

Part Number:G65SC22P2
US $3.90 - 4.00
Quantity:

piece

Product Summary

The G65SC22P2 is a CMOS versatile interface adapter with interval timer/counter. It is a flexible I/O device for use with the CMD G65SCXXX series 8-bit microprocessor family. The G65SC22P2 includes functions for programmed control of up to two peripheral devices. Two program controlled 8-bit bidirectional peripheral I/O ports allow direct interfacing between the microprocessor and selected peripheral units. Application versatility is further increased by various control registers, including an interrupt flag register, an interrupt enable register and two function control registers.

Parametrics

G65SC22P2 absolute maximum ratings: (1)Supply voltage VDD: -0.3V to 7V; (2)Input voltage VIN: -0.3V to VDD+0.3V; (3)Operating temperature: -40 to 85℃; (4)Storage temperature: -55 to 150℃.

Features

G65SC22P2 features: (1)CMOS process technology for low power consumption; (2)Fully compatible with NMOS 6522 devices; (3)Low power consumption allows battery-powered operation; (4)Two 8-bit,bidirectional peripheral I/O ports; (5)Two powerful 16-bit programmable Timer/Counters; (6)Serial bidirectional peripheral I/O port; (7)Enhanced "handshake" feature; (8)Latched input/output registers on both I/O ports; (9)Programmable Data direction registers; (10)TTL compatible I/O peripheral lines; (11)Single +5V power supply; (12)Available in 40-pin dual-in-line or 44-pin PLCC package.
