Product Summary

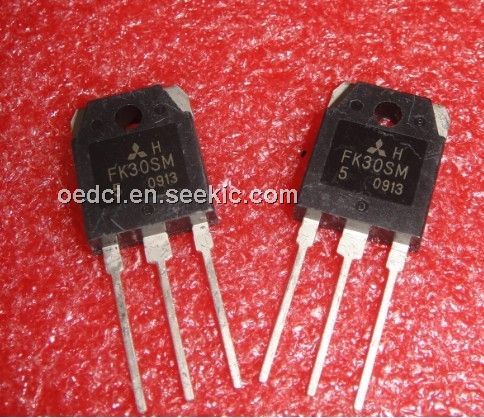

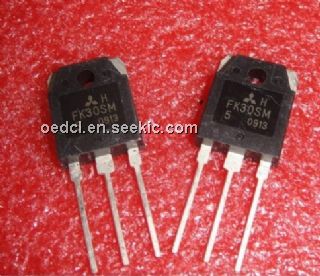

The FK30SM is a High-speed switching use. The applications of the FK30SM include Servo motor drive, Robot, UPS, Inverter Fluorecent lamp, etc.
Parametrics
FK30SM absolute maximum ratings: (1)Drain-source voltage: 300V; (2)Gate-source voltage: ±30V; (3)Drain current: 30A; (4)Drain current (Pulsed): 90A; (5)Source current: 30A; (6)Source current (Pulsed): 90A; (7)Maximum power dissipation: 275W; (8)Channel temperature: -55 to +150℃; (9)Storage temperature: -55 to +150℃; (10)Weight: 4.8g.
Features
FK30SM features: (1)VDSS: 300V; (2)rDS (ON) (MAX): 0.143W; (3)ID: 30A; (4)Integrated Fast Recovery Diode (MAX.): 150ns.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FK30SM-5 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FK30SM-6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
