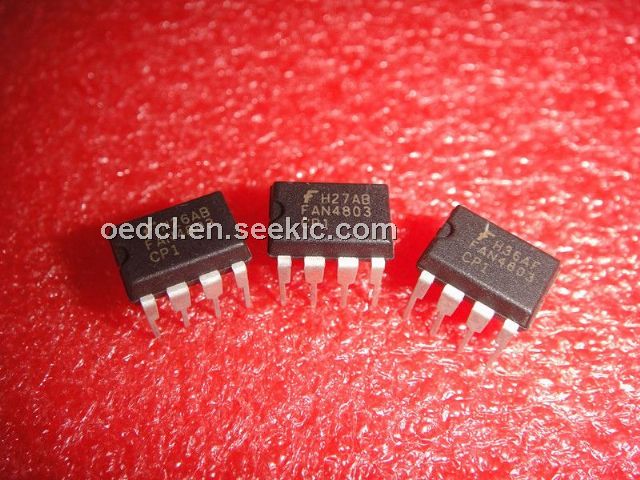

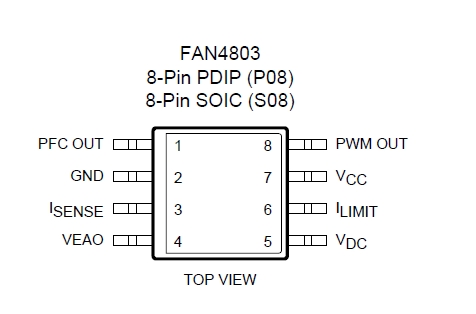

FAN4803

space-saving controller, 1A, 18.3V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.90 / Piece

PartNumber:: FAN4803

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-09

From Other Seller

Part Number:FAN4803
US $0.90 - 1.00
FAN4803-C2

US $1.50 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The fan4803 is a space-saving controller for power factor corrected, switched mode power supplies that offers very low start-up and operating currents. PFC and PWM of the fan4803 operates at the same frequency, 67kHz. The PFC frequency of the fan4803 is automatically set at half that of the 134kHz PWM.

Parametrics

fan4803 absolute maximum ratings: (1) ICC Current (average) : 40mA; (2) VCC MAX: 18.3V; (3) ISENSE Voltage: -5 to 1V; (4) Voltage on Any Other Pin: GND -0.3 to Vcc +0.3V; (5) Peak PFC OUT Current, Source or Sink: 1A; (6) Peak PWM OUT Current, Source or Sink: 1A; (7) Junction Temperature: 150°C; (8) Storage Temperature Range: -65 to 150°C; (9) Lead Temperature (Soldering, 10 sec) : 260°C; (10) Thermal Resistance (θJA) : 110°C/W (Plastic DIP) , 160°C/W (Plastic SOIC) .
