Product Summary

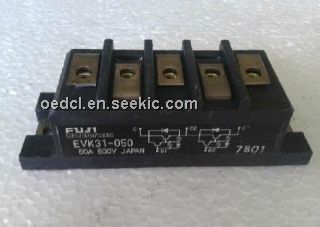

The EVK31-050 is a FUJI POWER TRANSISTOR MODULE. The applications of the CM30MD1-12H are Power Switching, AC Motor Controls, DC Motor Controls, Uninterruptible Power Supply.

Parametrics

EVK31-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 6V; (5)IC: 50A; (6)ICP: 100A; (7)IB: 3A; (8)IBP: 6A; (9)PC: 300W; (10)Junction temperature Tj: +150℃; (11)Storage temperature TSTG: -40℃ to +125℃; (12)Weight: 190g.

Features

EVK31-050 features: (1) Including Free Wheeling Diode; (2)High D.C. Current Grain; (3)Insulated Type.

Diagrams

EVK31-050 dimension figure
