Product Summary

The ET191 is a triple diffused planer type power darlington. The applications of the ET191 include Switching regulators, General purpose power amplifier.

Parametrics

ET191 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VCEO SUS: 450 V; (4)VEBO: 6 V; (5)IC: 12 A; (6)IB: I A; (7)PC: 100 W; (8)Tj :+ 150℃; (9)Tstg: -55 to +150℃.

Features

ET191 features: (1)High D.C. current gain; (2)High reliability.

Diagrams

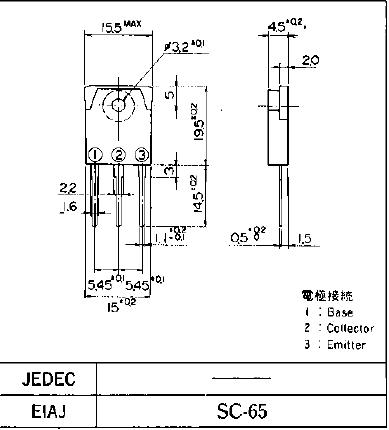

ET191 dimension
