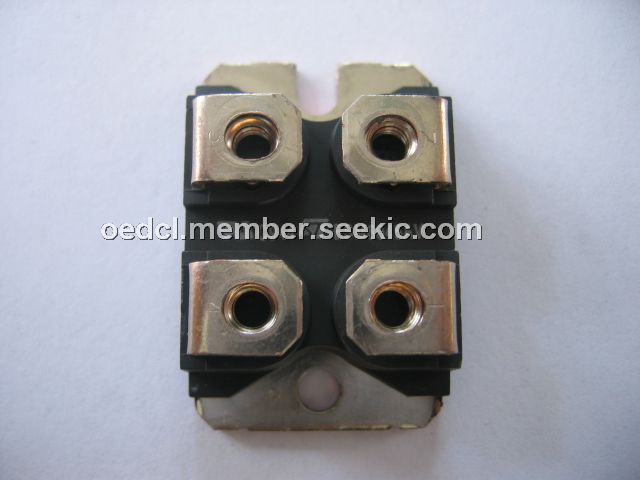

The ESM6045AV is a NPN darlington power module. The applications of it are motor control, SMPS & UPS, welding equipment.
Parametrics
ESM6045AV absolute maximum ratings: (1)Collector-Emitter Voltage (VBE = -5 V):1000 V; (2)Collector-Emitter Voltage (IB = 0):450 V; (3)Emitter-Base Voltage (IC =0):7 V; (4)Collector Current:72 A; (5)Collector Peak Current (tp = 10 ms):108 A; (6)Base Current:8 A; (7)Base Peak Current (tp =10ms):16 A; (8)Total Dissipation at Tc =25℃:250 W; (9)Storage Temperature:-55 to 150℃; (10)Max. Operating Junction Temperature:150℃; (11)Insulation Withstand Voltage (AC-RMS):2500℃.
Features
ESM6045AV features: (1)high current power bipolar module; (2)very low rth junction case; (3)specified accidental overload areas; (4)isolated case (2500V RMS); (5)easy to mount; (6)low internal parasitic inductance.

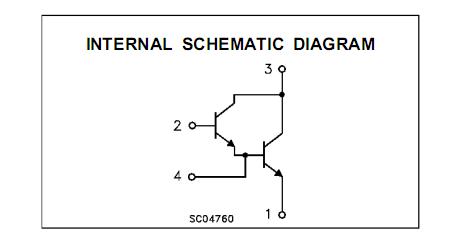

Diagrams
