Product Summary

The EP7312-CVZ is a System-on-chip with SDRAM & Enhanced Digital Audio Interface. The EP7312-CVZ is designed for ultra-low-power operation. Its core operates at only 2.5 V, while its I/O has an operation range of 2.5 V–3.3 V. The device has three basic power states: operating, idle and standby. MaverickKey unique hardware programmed IDs are a solution to the growing concern over secure web content and commerce. With Internet security playing an important role in the delivery of digital media such as books or music, traditional software methods are quickly becoming unreliable. The MaverickKey unique IDs provide OEMs with a method of utilizing specific hardware IDs such as those assigned for SDMI (Secure Digital Music Initiative) or any other authentication mechanism.

Parametrics

EP7312-CVZ absolute maximum ratings: (1)DC Core, PLL, and RTC Supply Voltage: 2.9 V; (2)DC I/O Supply Voltage (Pad Ring): 3.6 V; (3)DC Pad Input Current: ±10 mA/pin, ±100 mA cumulative; (4)Storage Temperature, No Power: –40℃ to +125℃.

Features

EP7312-CVZ features: (1)ARM7TDMI CPU Operating at Speeds of 74 and 90 MHz; (2)8 kBytes of Four-way Set-associative Cache; (3)MMU with 64-entry TLB; (4)Thumb. Code Support Enabled; (5)Supports bit streams with adaptive bit rates; (6)Allows for support of multiple audio decompression algorithms (MP3, WMA, AAC, Audible, etc.).

Diagrams

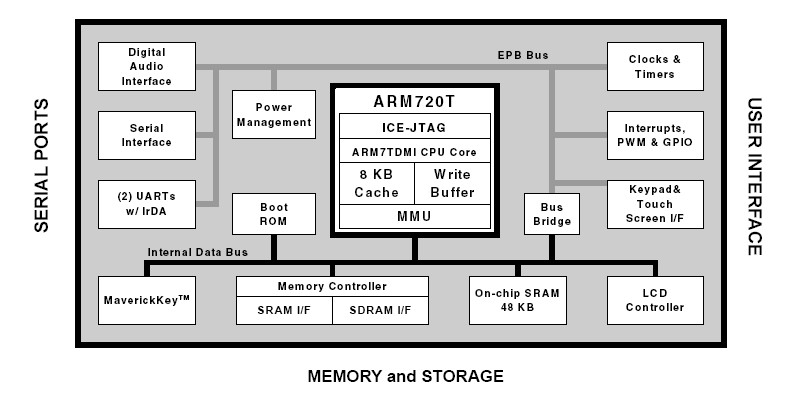

EP7312-CVZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP7312-CVZ
EP7312-CVZ
Cirrus Logic
Audio Systems-on-a-Chip (SoC) IC Hgh-Prfrmnc Low- Power SOC w/SDRAM
Data Sheet
0-109: $7.03
109-250: $6.83
EP7312-CVZ-90
EP7312-CVZ-90
Cirrus Logic
Audio Systems-on-a-Chip (SoC) IC Hgh-Prfrmnc Low- Power SOC w/SDRAM
Data Sheet
0-83: $8.38
83-100: $8.14
EP7312-CVZR
EP7312-CVZR
Cirrus Logic
Audio Systems-on-a-Chip (SoC) IC Hgh-Prfrmnc Low- Power SOC w/SDRAM
Data Sheet
0-171: $7.03
171-250: $6.19
