Product Summary

The ENC28J60/SS is a Stand-Alone Ethernet Controller. The Microchip Technology Inc. ENC28J60/SS is a standalone Ethernet controller with an industry standard Serial Peripheral Interface (SPI™). It is designed to serve as an Ethernet network interface for any microcontroller equipped with SPI. The ENC28J60/SS meets all of the specifications for IEEE 802.3. It incorporates a number of packet filtering schemes to limit incoming packets. It also provides internal DMA for fast data throughput and support for hardware assisted IP checksum calculation.

Features

ENC28J60/SS features: (1)IEEE 802.3 Compatible Ethernet Controller; (2)Integrated MAC and 10BASE-T PHY; (3)8-Kbyte Transmit/Receive Packet Dual Port Buffer SRAM; (4)Receiver and Collision Squelch Circuit; (5)Supports one 10BASE-T Port with Automatic Polarity Detection and Correction; (6)Programmable Automatic Retransmit on Collision; (7)Programmable Padding and CRC Generation; (8)Programmable Automatic Rejection of Erroneous Packets; (9)10 Mbit/s SPI Interface.

Diagrams

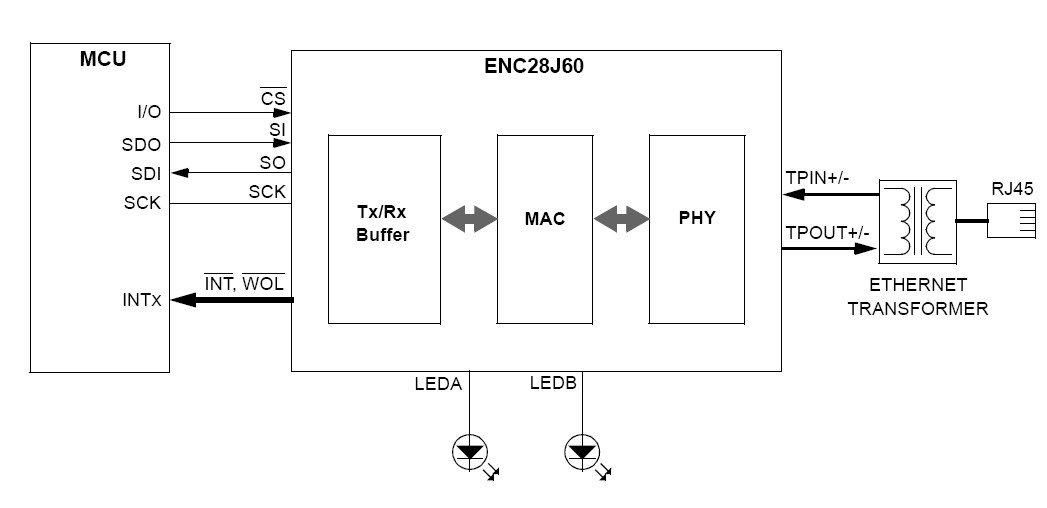

ENC28J60/SS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

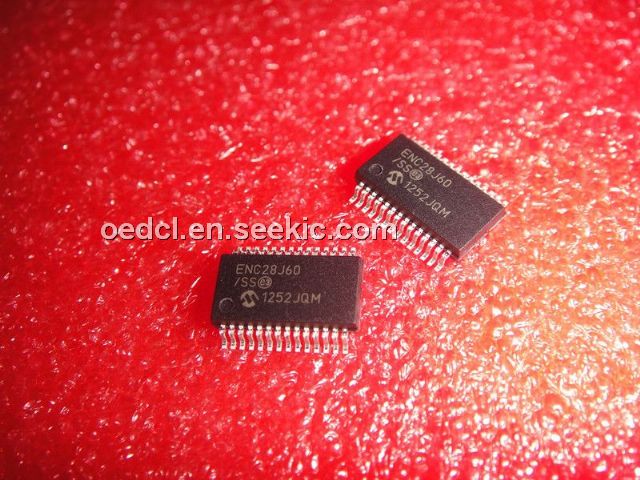

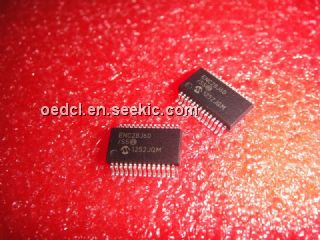

ENC28J60/SS
ENC28J60/SS
Microchip Technology
Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
0-1: $2.09
1-10: $1.67
10-25: $1.54
25-100: $1.39
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ENC20000
ENC20000

LARGE UTILITY ENCLOSURE NEMA 1
Data Sheet
0-1: $35.74
ENC28-GM-333
ENC28-GM-333
GHI Electronics
Ethernet Modules ETHERNET TYPE ENC28 GADGETEER MODULE
Data Sheet
0-1: $20.56
1-5: $20.55
ENC28J60
ENC28J60
Other

Data Sheet
Negotiable
ENC28J60/ML
ENC28J60/ML
Microchip Technology
Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
Negotiable
ENC28J60/SO
ENC28J60/SO
Microchip Technology
Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller
Data Sheet
Negotiable
ENC28J60/SOREL
ENC28J60/SOREL
Other

Data Sheet
Negotiable
