Product Summary

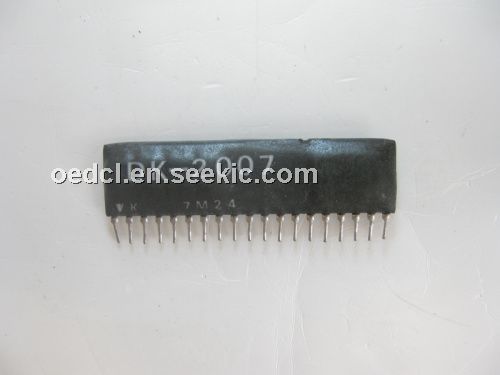

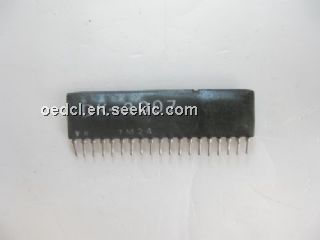

The DK-2007 is a Fractional-N Clock Synthesizer & Clock Multiplier. The DK-2007 is an extremely versatile system clocking device that utilizes a programmable phase lock loop. The DK-2007 is based on a hybrid analog-digital PLL architecture comprised of a unique combination of a Delta-Sigma Fractional-N Frequency Synthesizer and a Digital PLL. This architecture allows for both frequency synthesis/clock generation from a stable reference clock as well as generation of a lowjitter clock relative to an external noisy synchronization clock. The design is also unique in that it can generate low-jitter clocks relative to noisy external synchronization clocks at frequencies as low as 50 Hz. The DK-2007 supports both I²C and SPI for full software control.
Parametrics
DK-2007 absolute maximum ratings: (1)DC Power Supply VD: -0.3 to 6.0 V; (2)Input Current I IN: ±10 mA; (3)Digital Input Voltage (Note 1)VIN: -0.3 to VD + 0.4 V; (4)Ambient Operating Temperature (Power Applied)TA: -55 to 125 °C; (5)Storage Temperature Tstg: -65 to 150 °C.
Features
DK-2007 features: (1)Delta-Sigma Fractional-N Frequency Synthesis; (2)Clock Multiplier / Jitter Reduction; (3)Highly Accurate PLL Multiplication Factor; (4)IC / SPI Control Port; (5)Configurable Auxiliary Output; (6)Flexible Sourcing of Reference Clock; (7)Minimal Board Space Required;
Diagrams
