Product Summary

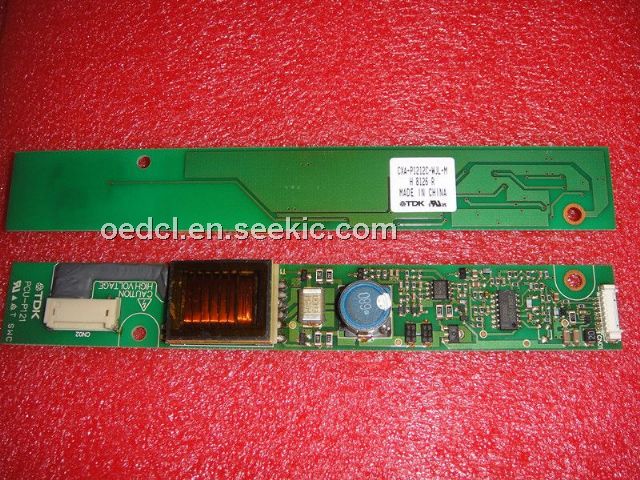

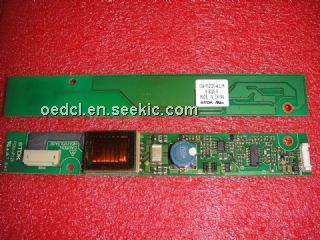

The CXA-P1212C-WJL-M is a DC-AC inverter unit. This low profile DC to AC Inverter is developed for dual lamps, low power LCD back-light. Application includes industrial PC and LCD monitor. The applications of the CXA-P1212C-WJL-M include 8 to 12 inches double lamp type, Lamp Voltage 600Vrms, Lamp Current 6mArms and Lamp Start Up Voltage 1700Vrms (Vin : 12V).

Parametrics

CXA-P1212C-WJL-M absolute maximum ratings: (1)Vin: 10.8 to 13.2V; (2)GND: 0V; (3)Vrmt: 0 to 0.4V; (4)Vst: 0V/5V; (5)Vbr/Rbr: 0 to 2.5V/0 to 50kΩ.

Features

CXA-P1212C-WJL-M features: (1)Wide operating temperature range; (2)Alarm signal function; (3)PWM dimming type.; (4)Current Feedback Circuit; (5)Silicon Coating in High Voltage area.

Diagrams

CXA-P1212C-WJL-M dimension
