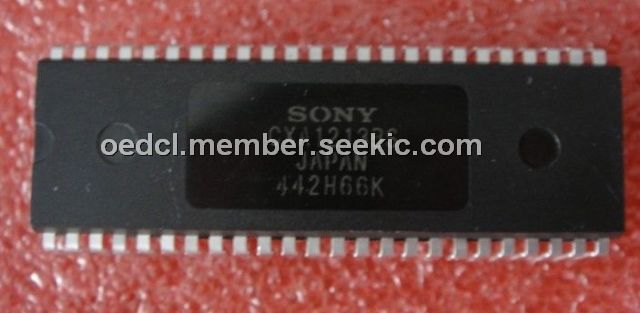

Product Summary

The CXA1213BS is a Y/chroma/jungle signal processing IC of PAL, NTSC systems color TVs.

Parametrics

CXA1213BS absolute maximum ratings: (1)supply votlage, VCC: 12V; (2)storage temperature, Tstg: -65 to 150℃; (3)allowable power dissipation, PD: 2.2W.

Features

CXA1213BS features: (1)TV system is compatible with PAL, SECAM, and NTSC through combination with the CXA1214P; (2)no adjustment of H,V oscillation frequency by count down system; (3)built-in 50/60Hz automatic discrimination circuit and compulsory mode applicable; (4)built in 3.58/4.43 MHz color sub carrier oscillation frequency automatic discrimination circuit and compulsory mode applicable; (5)input prohibition gate function according to frequency of input vertical synchronization; (6)black expansion function; (7)high speed blanking function which blanks interval of characters; (8)built-in SHP circuit and OFF applicalbe; (9)auto white balance IC CXA1024S compatible.

Diagrams

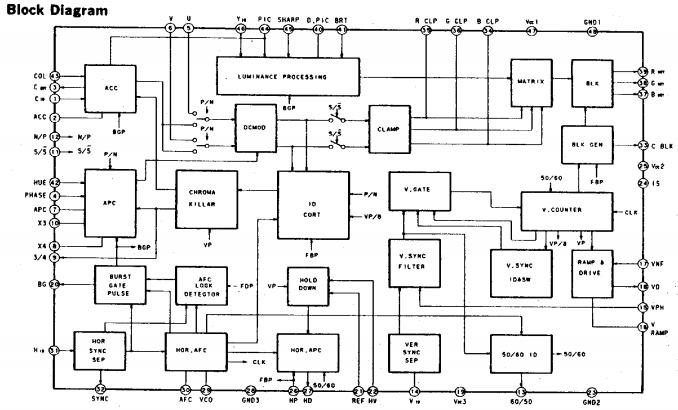

CXA1213BS block diagram
