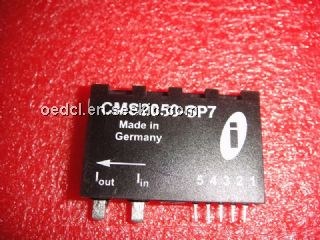

Product Summary
The CMS2050-SP7 is a MagnetoResistive Current Sensor. It is designed for highly dynamic electronic measurement of DC,AC, pulsed and mixed currents with integrated galvanic isolation. The MagnetoResistive technology enables an excellent dynamic response without the hysteresis that is present in iron core based designs. The applications of the CMS2050-SP7 are Solar power converters, AC variable speed drives, Converters for DC motor drives, Uninterruptible power supplies, Switched mode power supplies, Power supplies for welding applications.
Parametrics
CMS2050-SP7 absolute maximum ratings: (1)VCC Positive supply voltage: -0.3V to +16V; (2)VSS Negative supply voltage: -16V to +0.3V; (3)IPM Maximum primary current): -500A to +500A; (4)Tamb Ambient temperature: -25℃ to +85℃; (5)Tstg Storage temperature: -25℃ to +85℃.
Features
CMS2050-SP7 features: (1)Based on the Anisotropic Magneto Resistive (AMR) effect; (2)Measuring range up to 3 times nominal current; (3)Galvanic isolation between primary and measurement circuit; (4)Bipolar 15 V power supply.

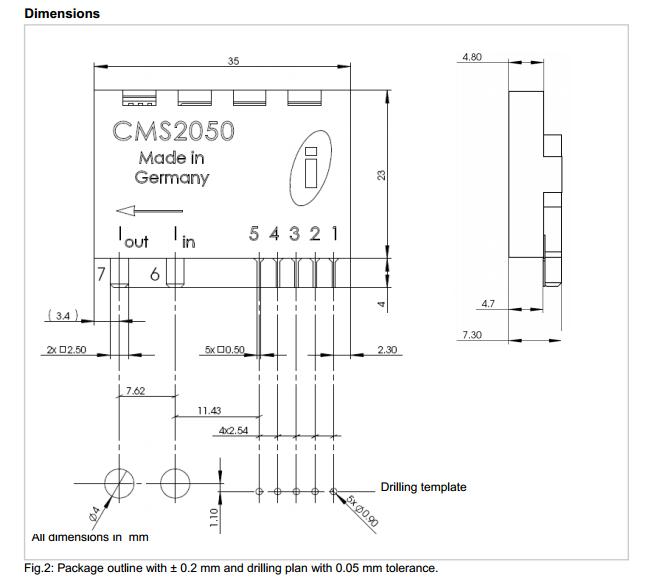

Diagrams
