CMP401

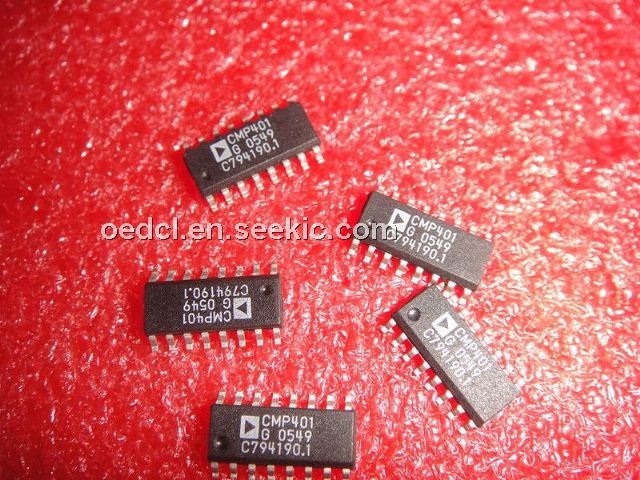

CMP401, quad comparator, 16 V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.80 / Piece

PartNumber:: CMP401

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-12

From Other Seller

Part Number:CMP401
US $0.80 - 1.00
Quantity:

piece

Product Summary

The CMP401 is a quad comparator with separate input and output supplies. Separate supplies enable the input stage to be operated from +3 volts to as high as ±6 volts. The output can be supplied with either +3 volts or +5 volts as determined by the interface logic or available supplies. Independent input and output supplies combined with fast propagation make the CMP401 excellent choices for interfacing to portable instrumentation. Applications are (1)battery operated instrumentation; (2)line receivers; (3)level translators; (4)read channel detection.

Parametrics

CMP401 absolute maximum ratings: (1)Total Analog Supply Voltage: +16 V; (2)Digital Supply Voltage: +7 V; (3)Analog Positive Supply—Digital Positive Supply: 200 mV; (4)Input Voltage2: ±7 V; (5)Differential Input Voltage: ±9 V; (6)Storage Temperature Range P, S, RU Package: -65°C to +150°C; (7)Operating Temperature Range: -40°C to +125°C; (8)Junction Temperature Range P, S, RU Package: -65°C to +150°C; (9)Lead Temperature Range (Soldering, 60 sec): +300°C.

Features

CMP401 features: (1)23 ns or 65 ns Propagation Delay; (2)Single-Supply Operation; (3)Compatible with +3 V and +5 V Logic; (4)Separate Input and Output Sections; (5)Low Power; (6)Wide Input Range: –5 V to +3.9 V.
