CM100TU-24H

CM100TU-24H, high power switching use insulated type, CPGA, 1200V, 650W, MITSUBISHI Electronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $162.00~165.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	165.00 / Piece
6 ~ 10 :	162.00 / Piece

PartNumber:: CM100TU-24H

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: CPGA | D/C: 10+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-31

From Other Seller

Part Number:CM100TU-24H
US $162.00 - 165.00
CM100TU-24H Trans IGBT Module N-CH 1.2KV 100A

US $8.50 - 12.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

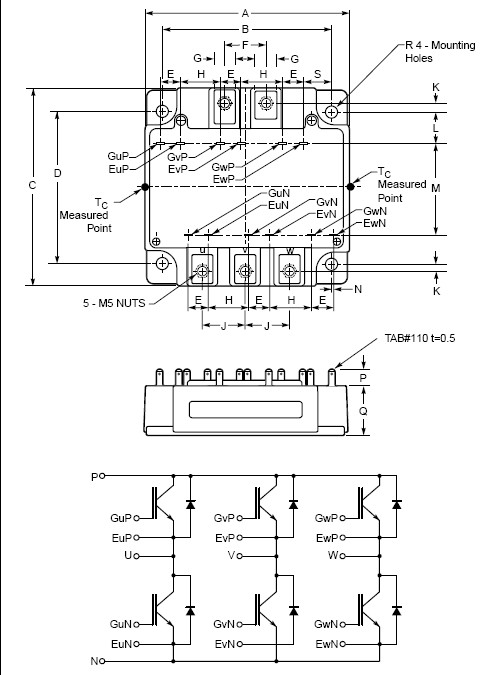

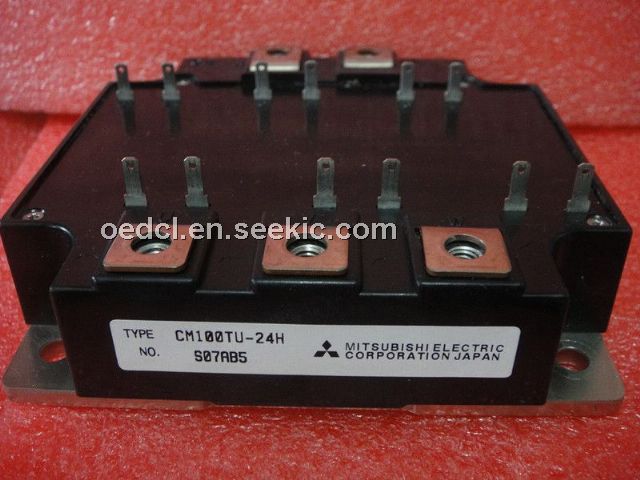

The CM100TU-24H is a high power switching use insulated type. The CM100TU-24H is designed for use in switching applications. The CM100TU-24H consists of six IGBTs in a three phase bridge configuration, with each transistor having a reverse-connected superfast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM100TU-24H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

CM100TU-24H absolute maximum ratings: (1)Junction Temperature : -40 to 150 ℃; (2)Storage Temperature : -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) : 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) : ±20 Volts; (5)Collector Current (Tc = 25℃) : 100 Amperes; (6)Emitter Current : 100 Amperes; (7)Peak Emitter Current : 200 Amperes; (8)Maximum Collector Dissipation (Tj < 150℃) : 650 Watts; (9)Mounting Torque, M5 Main Terminal : 2.5~3.5 N • m; (10)Mounting Torque, M5 Mounting : 2.5~3.5 N • m; (11)Weight : 680 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) : 2500 Vrms.

Features

CM100TU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
