Product Summary

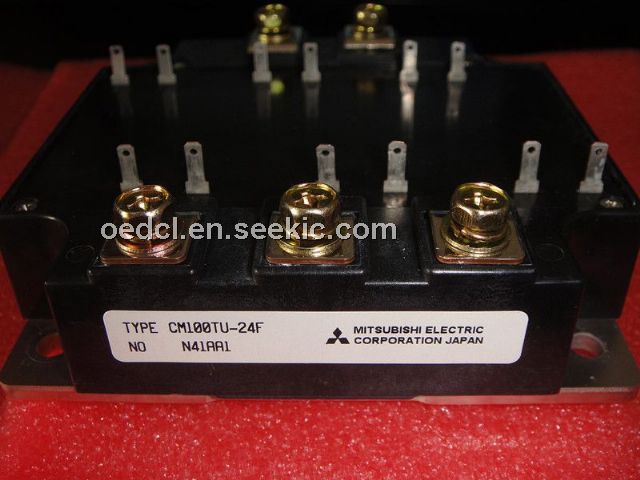

The cm100tu-24f is a Mitsubishi IGBT module. Applications of the cm100tu-24f include: General purpose inverters & Servo controls, etc.
Parametrics
cm100tu-24f absolute maximum ratings: (1) Collector-emitter voltage G-E short VCES: 1200V; (2) Gate-emitter voltage C-E Short, VGES: ±20V; (3) Collector current IC: 100A (Tc=25°C) , ICM: 200A (Pulse) ; (4) Emitter current IE: 100A (Tc=25°C) , IEM: 200A (Pulse) ; (5) Maximum collector dissipation PC: 500W (Tc=25°C) ; (6) Junction temperature Tj: -40 to +150°C; (7) Storage temperature Tstg: -40 to +125°C; (8) Isolation voltage Viso: 2500V (Main terminal to base plate, AC 1 min.) .
Features
cm100tu-24f features: (1) IC: 100A; (2) VCES: 1200V; (3) Insulated Type; (4) 6-elements in a pack.

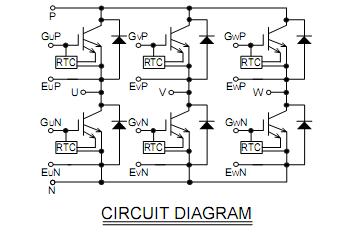

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100TU-24F |
|
IGBT MOD 6PAC 1200V 100A F SER |
Data Sheet |
|
|
||||||
