Product Summary
The CD4050BE is a non-inverting hex buffer, respectively, and features logiclevel conversion using only one supply voltage (VCC). The input-signal high level (VIH) can exceed the VCC supply voltage when these devices are used for logic-level conversions. The CD4050BE is intended for use as CMOS to DTL/TTL converters and can drive directly two DTL/TTL loads. The applications of the CD4050BE include CMOS to DTL/TTL Hex Converter, CMOS Current Sink or Source Driver, CMOS High-To-Low Logic Level Converter.
Parametrics
CD4050BE absolute maximum ratings: (1)Supply Voltage (V+ to V-): -0.5V to 20V; (2)DC Input Current, Any One Input: ±10mA.
Features
CD4050BE features: (1)CD4049UB Inverting; (2)CD4050B Non-Inverting; (3)High Sink Current for Driving 2 TTL Loads; (4)High-To-Low Level Logic Conversion; (5)100% Tested for Quiescent Current at 20V; (6)Maximum Input Current of 1μA at 18V Over Full Package Temperature Range; 100nA at 18V and 25℃; (7)5V, 10V and 15V Parametric Ratings.

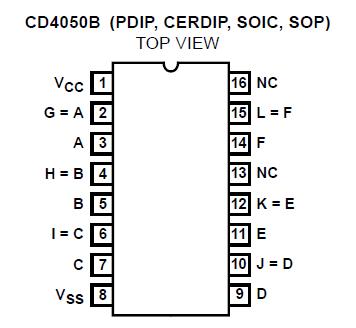

Diagrams
