Product Summary
The BUH515 is a high voltage fast-switching npn power transistor. The BUH515 is manufactured using Multiepitaxial Mesa technology for cost-effective high performance and uses a Hollow Emitter structure to enhance switching speeds. The BUH515 is designed for use in horizontal deflection circuits in televisions and monitors. Applications: horizontal deflection for colour tv and monitors, switch mode power supplies
Parametrics
BUH515 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 1500 V; (2)VCEO Collector-Emit ter Voltage (IB = 0): 700 V; (3)VEBO Emitter-Base Voltage (IC = 0): 10 V; (4)IC Collector Current: 8 A; (5)ICM Collector Peak Current (tp < 5 ms): 12 A; (6)IB Base Current: 5 A; (7)IBM Base Peak Current (tp < 5 ms): 8 A; (8)Ptot Total Dissipation at Tc = 25 ℃: 50 W; (9)Tstg Storage Temperature: -65 to 150℃; (10)Tj Max. Operating Junction Temperature: 150℃.
Features
BUH515 features: (1)high voltage capability; (2)u.l. recognised isowatt218 package (u.l. file # e81734 (n)).

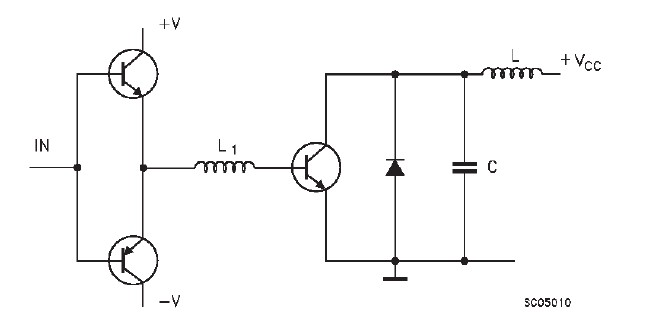

Diagrams

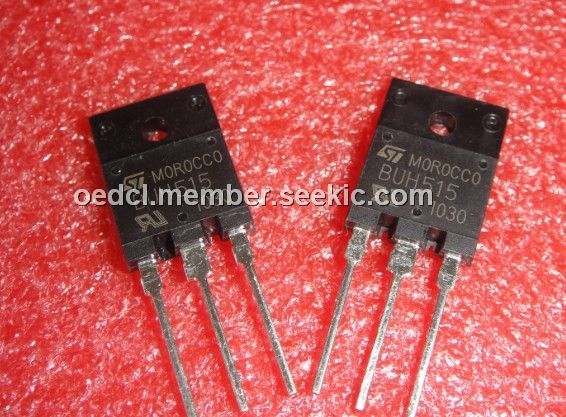

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUH515 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BUH515D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BUH515FP |
Other |
|
Data Sheet |
Negotiable |
|
||||
