Product Summary

The BTS7166 is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. The BTS7166 provides embedded protective functions.

Parametrics

BTS7166 absolute maximum ratings: (1)Supply voltageVbb: 43 V; (2)Supply voltage for full short circuit protection Tj,start =-40 ...+150℃ Vbb: 36 V; (3)Load current (Short-circuit current, see page 6)IL: self-limited A; (4)Load dump protection1)VLoadDump = VA + Vs, VA = 13.5 V RI2)= 2 Ω, td = 400 ms; IN= low or high, each channel loaded with RL = 13.5 Ω, VLoaddump3): 60 V; (5)Operating temperature range Tj: -40 ...+150℃; (6)Storage temperature range Tstg: -55 ...+150℃; (7)Power dissipation (DC)4)Ta = 25℃: 3.6W; (8)(all channels active)Ta = 85℃: 1.9W.

Features

BTS7166 features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.

Diagrams

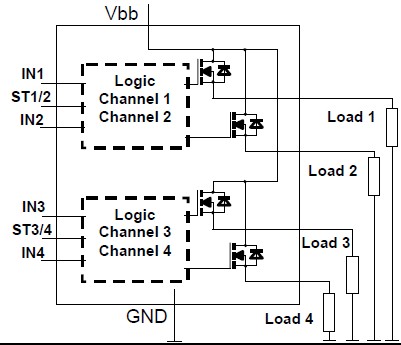

BTS7166 pin connection
