Product Summary
The BTS4140N is a smart high-side power switch one channel: 1 x 1Ω. The BTS4140N N channel vertical power MOSFET with charge pump and current controlled input, monolithically integrated in Smart SIPMOS technology. The BTS4140N provides embedded protective functions.
Parametrics
BTS4140N absolute maximum ratings: (1)Supply voltage Vbb: 60 V; (2)Load current IL: self limited A; (3)Maximum current through the input pin ( DC ) IIN: ±15 mA; (4)Operating temperature Tj: -40 to +150℃; (5)Storage temperature Tstg: -55 to +150℃; (6)Power dissipation TA = 25℃ Ptot: 1.7 W.
Features
BTS4140N features: (1)Current controlled input; (2)Short circuit protection; (3)Current limitation; (4)Overload protection; (5)Overvoltage protection (including load dump); (6)Switching inductive loads; (7)Clamp of negative voltage at output with inductive loads; (8)Thermal shutdown with restart; (9)ESD - Protection; (10)Loss of GND and loss of Vbb protection; (11)Very low standby current.

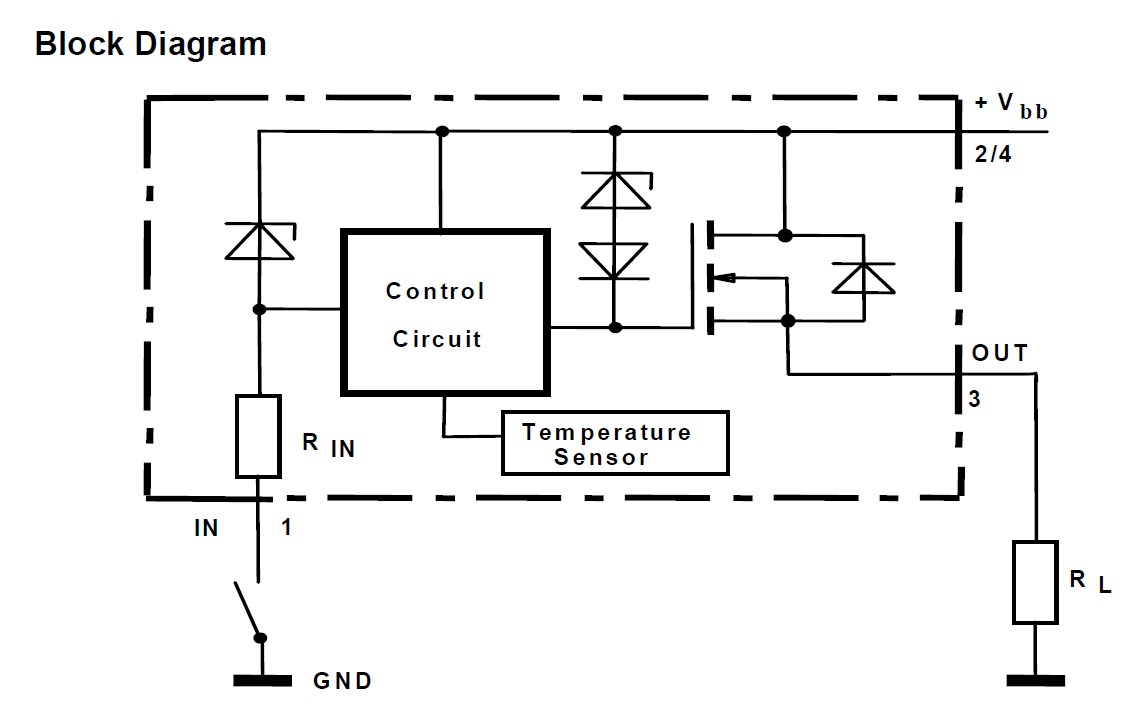

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS4140N |
Infineon Technologies |
Power Switch ICs - POE / LAN Smart High Side MINI-PROFET |
Data Sheet |
|
|
||||||||||||||
