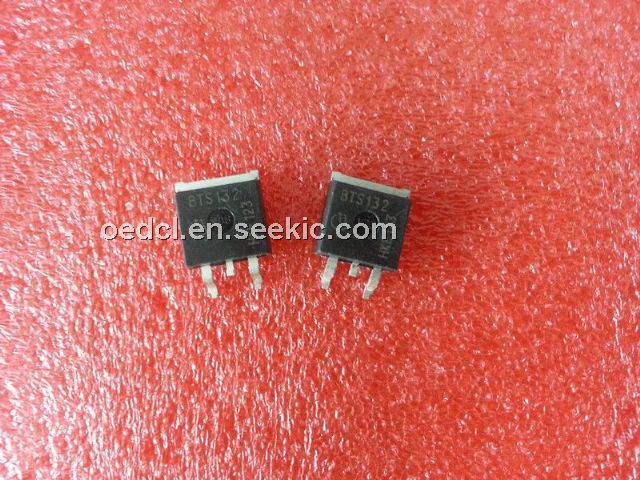

BTS132

BTS132, temperature sensor, 60 V, 6.0 A, 1200 W, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece

PartNumber:: BTS132

Brand:: eupec GmbH - infineon | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:BTS132
US $0.80 - 1.00
Quantity:

piece

Product Summary

The BTS132 is an n channel logic level enhancement mode temperature sensor with thyristor characteristic.

Parametrics

BTS132 absolute maximum ratings: (1)Drain-source voltage VDS: 60 V; (2)Drain-gate voltage, RGS = 20 kΩ VDGR: 60 V; (3)Gate-source peak voltage, aperiodic Vgs: ± 20 V; (4)Gate-source voltage VGS: ± 10 V; (5)Continuous drain current, TC = 25 °C ID: 24 A; (6)ISO drain current TC = 85 °C, VGS = 10 V, VDS = 0.5 V ID-ISO: 6.0 A; (7)Pulsed drain current, TC = 25 °C ID puls: 96 A; (8)Short circuit current, Tj = – 55 : + 150 °C ISC: 80 A; (9)Short circuit dissipation, Tj = – 55 : + 150 °C PSCmax: 1200 W; (10)Power dissipation Ptot: 75 W; (11)Operating and storage temperature range Tj, Tstg: – 55 to + 150 °C; (12)Thermal resistance chip-case Rth JC: ≤ 1.67 K/W; Chip-ambient Rth JA: ≤ 75 K/W.

Features

BTS132 features: (1)N channel; (2)Logic level; (3)Enhancement mode; (4)Temperature sensor with thyristor characteristic; (5)The drain pin is electrically shorted to the tab.
