Product Summary
The BT134-600E is a Triac. Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.
Parametrics
BT134-600E absolute maximum ratings: (1)Repetitive peak off-state voltages: 500 to 800 V; (2)RMS on-state current Non-repetitive peak on-state current: 4A; (3)Peak gate current: 2 A; (4)Peak gate voltage: 5 V; (5)Peak gate power: 5 W; (6)Average gate power: 0.5 W; (7)Storage temperature: -40 150 ℃; (8)Operating junction temperature: - 125 ℃.
Features
BT134-600E features: (1)Gate trigger current : 5mA; (2)Latching current : 7mA; (3)Holding current : 5mA; (4)On-state voltage : 1.4V; (5)Gate trigger voltage : 0.7V; (6)Off-state leakage current : 0.5 mA.

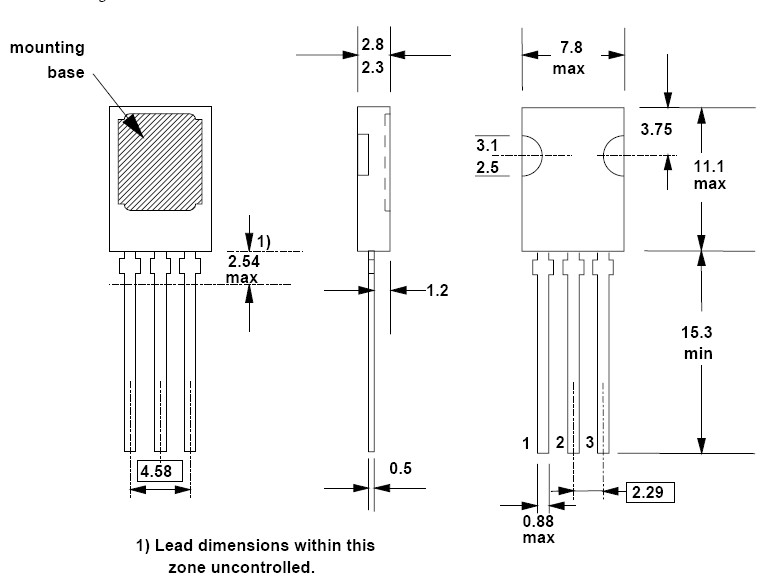

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BT134-600E |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BT134-600E,127 |
NXP Semiconductors |
Triacs RAIL TRIAC |
Data Sheet |
|
|
||||||||||||
