Product Summary

The BD9893F is a DC-AC Inverter Control IC.

Parametrics

BD9893F absolute maximum ratings: (1)Supply Voltage : 15 V; (2)Operating Temperature Range : -35～+95℃; (3)Storage Temperature Range : -55～+125℃; (4)Power Dissipation : 562mW; (5)Maximum Junction Temperature : +150℃.

Features

BD9893F features: (1)1ch control with Push-Pull; (2)Lamp current and voltage sense feed back control; (3)Sequencing easily achieved with Soft Start Control; (4)Short circuit protection with Timer Latch; (5)Under Voltage Lock Out; (6)Short circuit protection with over voltage; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)BURST mode controlled by PWM and DC input.

Diagrams

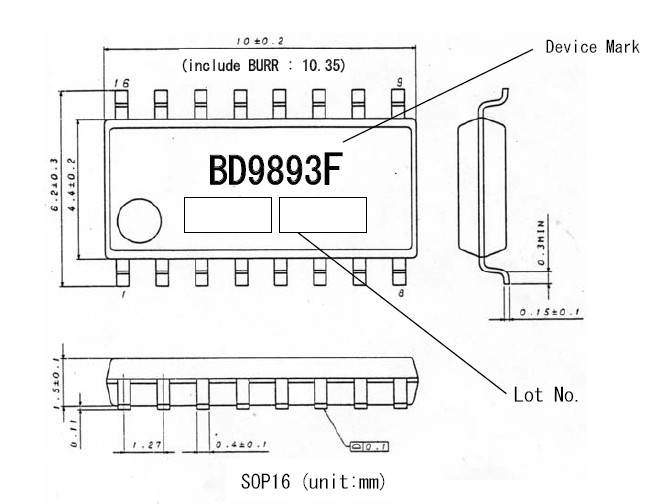

BD9893F dimension
