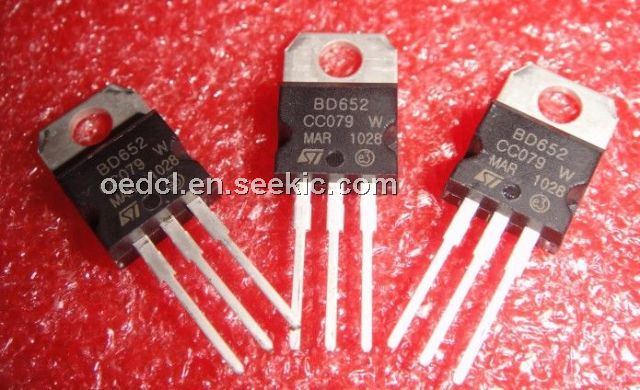

BD652

BD652, PNP silicon power Darlington, TO, -8A, -12A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
200 ~ 1000 :	0.90 / Piece

PartNumber:: BD652

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:BD652
US $0.90 - 1.00
Quantity:

piece

Product Summary

The BD652 is a PNP silicon power Darlington.

Parametrics

BD652 absolute maximum ratings: (1)Emitter-base voltage : -5 V; (2)Continuous collector current : -8 A; (3)Peak collector current (see Note 1) : -12 A; (4)Continuous base current : -0.3 A; (5)Continuous device dissipation at (or below) 25℃ case temperature (see Note 2) : 62.5 W; (6)Continuous device dissipation at (or below) 25℃ free air temperature (see Note 3) : 2 W; (7)Unclamped inductive load energy (see Note 4) : 50 mJ; (8)Operating junction temperature range : -65 to +150 ℃; (9)Storage temperature range : -65 to +150 ℃; (10)Lead temperature 3.2 mm from case for 10 seconds : 260 ℃.

Features

BD652 features: (1)Designed for Complementary Use with BD645, BD647, BD649 and BD651; (2)62.5 W at 25℃ Case Temperature; (3)8 A Continuous Collector Current; (4)Minimum hFE of 750 at 3 V, 3 A.
