Product Summary

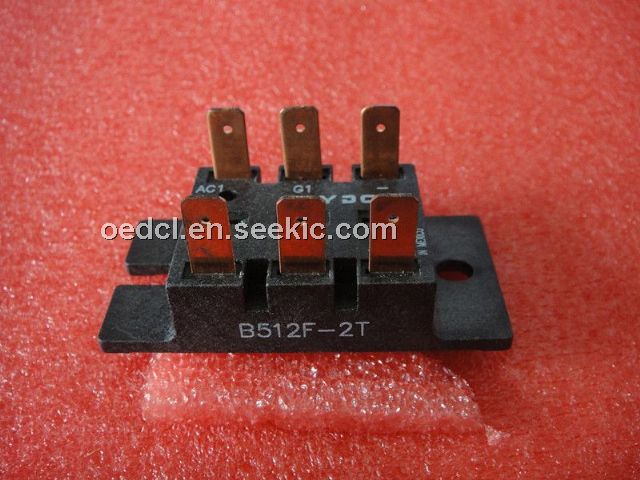

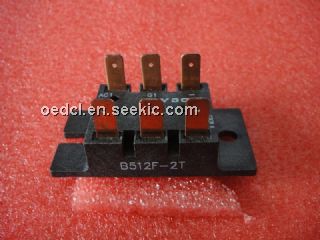

The B512F-2T is a SCR/Diode Module.
Parametrics
B512F-2T absolute maximum ratings: (1)Maximum DC Output Current @ Tc = 85℃ (A): 25 A; (2)Maximum Voltage Drop @ Amps Peak: 1.65V @ 25A ; (3)Operating Junction Temperature Range: -40°C to +125°C; (4)Critical Rate of Rise of On-State Current @ TJ=125℃ (A/μs): 100A; (5)Critical Rate of Rise of Off-State Voltage: 500A; (6)Maximum Non-Repetitive Surge Current (A) [ 1/2Cycle, 60Hz]: 250A ; (7)Maximum Required Gate Current to Trigger @ 25℃: 60mA ; (8)VGT Maximum Required Gate Voltage to Trigger @ 25℃: 2.5V; (9)Average Gate Power: 0.5W; (10)Maximum Peak Gate Voltage (Reverse): 5.0V.
Features
B512F-2T features: (1)Eight Standard Circuits; (2)AC or DC Variable Voltage Output to 15KW.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B512F-2T |
Crydom |
Discrete Semiconductor Modules SCR DIODE 240V 25A |
Data Sheet |
Negotiable |
|
||||||||||||
 |
B512F-2T-YEA |
Crydom |
Discrete Semiconductor Modules MOD DIODE SCR 25A 240VAC .250inQC |
Data Sheet |
|
|
||||||||||||
|
B512F-2T-YEB |
Crydom |
Discrete Semiconductor Modules MOD DIODE SCR 25A 240VAC .250inQC |
Data Sheet |
|
|
||||||||||||
