Product Summary
The B1100 is a 1.0A high voltage schottky barrier rectifier.
Parametrics
B1100 absolute maximum ratings: (1)Working peak reverse voltage, VRWM: 100V; (2)RMS reverse voltage, VR(RMS): 70V; (3)Average rectified output current, IO: 1.0A; (4)Non-repetitive peak forward surge current, IFSM: 50A; (5)Forward voltage, VFM: 0.75V; (6)Peak reverse current, IRM: 0.5mA; (7)Typical total capacitance, CT: 100pF; (8)Operating and storage temperature range, Tj, TSTG: -65 to +150℃.
Features
B1100 features: (1)Schottky barrier chip; (2)Guard ring die construction for transient protection; (3)Ideally suited for automatic assembly; (4)Low power loss, high efficiency; (5)Surge overload rating to 50A peak; (6)For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications; (7)High temperature soldering: 260℃/10 second at terminal; (8)Lead free finish/RoHS compliant.

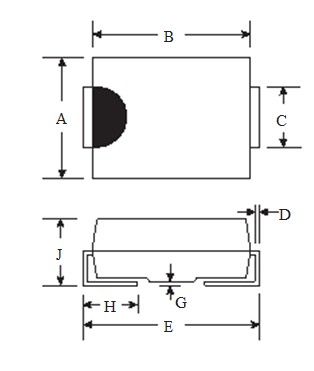

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B1100-13 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
B1100-13-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 1A |
Data Sheet |
|
|
||||||||||||
|
B1100B-13 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
B1100B-13-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 1A |
Data Sheet |
|
|
||||||||||||
 |
B1100CA |
Littelfuse |
Sidacs 100mA 50A |
Data Sheet |
Negotiable |
|
||||||||||||
 |
B1100CARP |
Littelfuse |
Surge Suppressors 100mA 50A Single Negative |
Data Sheet |
|
|
||||||||||||
|
B1100CC |
Littelfuse |
Sidacs 100mA 500A Single Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
B1100CCLRP |
Littelfuse |
Surge Suppressors 100mA 500A Single Negative |
Data Sheet |
|
|
||||||||||||
