Product Summary
The APT6030BVFR is a new generation of high voltage N-Channel enhancement mode power MOSFET. This new technology minimizes the JFET effect, increases packing density and reduces the on-resistance. The APT6030BVFR also achieves faster switching speeds through optimized gate layout.
Parametrics
APT6030BVFR absolute maximum ratings: (1)Drain-Source Voltage, VDSS: 600V; (2)Continuous Drain Current @ TC = 25℃, ID: 21A; (3)Pulsed Drain Current, IDM: 84A; (4)Gate-Source Voltage Continuous, VGS: ±30V; (5)Gate-Source Voltage Transient, VGSM: ±40V; (6)Total Power Dissipation @ TC = 25℃, PD: 300W; (7)Linear Derating Factor, PD: 2.4W/℃; (8)Operating and Storage Junction Temperature Range, TJ,TSTG: -55 to 150℃; (9)Lead Temperature: 0.063" from Case for 10 Sec., TL: 300℃; (10)Avalanche Current(Repetitive and Non-Repetitive), IAR: 21A; (11)Repetitive Avalanche Energy, EAR: 30mJ; (12)Single Pulse Avalanche Energy, EAS: 1300mJ.
Features

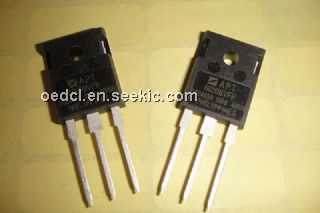

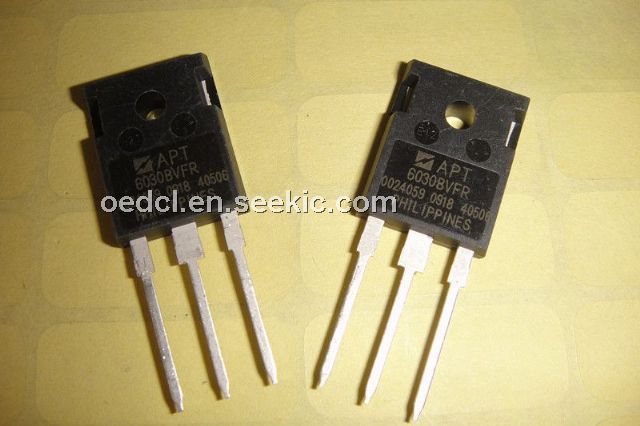

APT6030BVFR features: (1)Fast Recovery Body Diode; (2)100% Avalanche Tested; (3)Lower Leakage; (4)Popular TO-247 Package; (5)Faster Switching.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 APT6030BVFR |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
APT6030BVFRG |
|
MOSFET N-CH 600V 21A TO-247 |
Data Sheet |
|
|
||||||
