ADM485

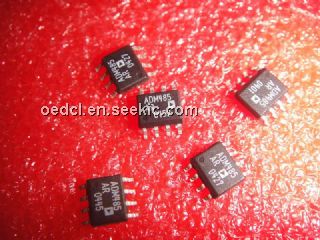

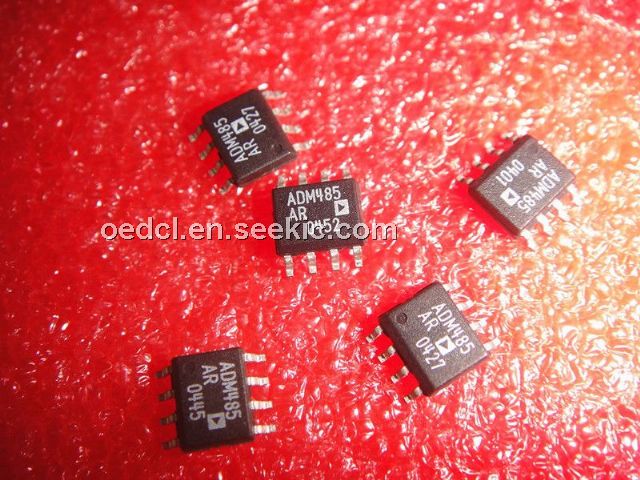

ADM485, line transceiver, +7V, 450mW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece

PartNumber:: ADM485

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:ADM485
US $0.80 - 1.00
ADM485ANZ Interface - Drivers, Receivers, Transceivers

US $0.25 - 0.50 / Piece
(0) Remove
ADM485AR SOP

US $0.30 - 0.30 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADM485 is a line transceiver. It is suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. The part contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled, the outputs are tristated. The applications of the ADM485 are Low Power RS-485 Systems, DTE-DCE Interface, Packet Switching, LocalArea Networks, Data Concentration, Data Multiplexers, Integrated Services Digital Network (ISDN).

Parametrics

ADM485 absolute maximum ratings: (1)VCC: +7V; (2)Driver Input (DI): -0.3V to VCC + 0.3V; (3)Control Inputs (DE, RE): -0.3V to VCC + 0.3V; (4)Receiver Inputs (A, B): -14V to +14V; (5)Driver Outputs: -14V to +14V; (6)Receiver Output: -0.5V to VCC +0.5V; (7)Power Dissipation 8-Pin DIP: 500mW; (8)Power Dissipation 8-Pin SOIC: 450mW; (9)Power Dissipation 8-Pin Cerdip: 500mW; (10)Operating Temperature Range, Commercial (J Version): 0℃ to +70℃, Industrial (A Version): -40℃ to +85℃; (11)Storage Temperature Range: -65℃ to +150℃.
