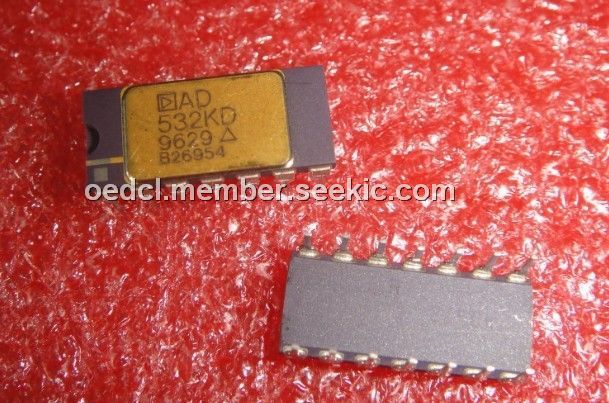

Product Summary

The AD532KD is the first pretrimmed single chip monolithic multiplier/ divider. The AD532KD guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532KD is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532KD can be used as a direct replacement for other IC multipliers that require external trim networks (such as the AD530).

Parametrics

AD532KD absolute maximum ratings: (1)Feedthrough, X (Y Nulled, X = 20 V pk-pk 50 Hz): 30 100 mV; (2)Feedthrough, Y (X Nulled, Y = 20 V pk-pk 50 Hz): 25 80 mV; (3)Small Signal BW (VOUT = 0.1 rms): 1MHz; (4)1% Amplitude Error: 75 kHz; (5)Output Voltage Swing: ±10 to ±13 V; (6)Output Impedance (f £ 1 kHz): 1 W; (7)Output Offset Voltage: 30 mV; (8)Signal Voltage Range (Diff. or CM Operating Diff): ±10 V; (9)CMRR: 50 dB; (10)Temperature Ranges: 0℃ to +70℃.

Features

AD532KD features: (1)Pretrimmed to 61.0% (AD532K); (2)No External Components Required; (3)Guaranteed 61.0% max 4-Quadrant Error (AD532K); (4)Diff Inputs for (X1 – X2)(Y1 – Y2)/10 V Transfer Function; (5)Monolithic Construction, Low Cost.

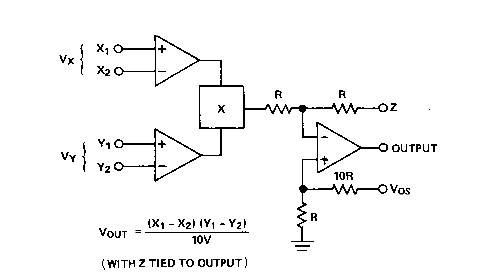

Diagrams

AD532KD pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD532KD
AD532KD
Analog Devices Inc
IC MULTIPLIER 10V 14-CDIP
Data Sheet
1-5: $37.91
AD532KD/+
AD532KD/+
Analog Devices Inc
IC MULTIPLIER 10V 14-CDIP
Data Sheet
Negotiable
AD532KDZ
AD532KDZ

IC MULTIPLIER 10V 14CDIP
Data Sheet
0-1: $66.56
1-10: $62.21
10-100: $58.00
