Product Summary

The AD2S82AKP is a monolithic 10-, 12-, 14- or 16-bit tracking resolver-to-digital converter contained in a 44-lead J leaded PLCC package. Two extra functions are provided in the new surface mount package–COMPLEMENT and VCO output. The AD2S82AKP is a monolithic 12-bit fixed resolution tracking resolver-to-digital converter packaged in a 28-lead DIP.

Parametrics

AD2S82AKP absolute maximum ratings: (1)+VS 2: +14 V dc; (2)–VS: –14 V dc; (3)+VL: +VS; (4)Reference: +14 V to –VS; (5)SIN: +14 V to –VS; (6)COS: +14 V to –VS; (7)Any Logical Input: –0.4 V dc to +VL dc; (8)Demodulator Input: +14 V to –VS; (9)Integrator Input: +14 V to –VS; (10)VCO Input: +14 V to –VS; (11)Power Dissipation: 860 mW; (12)Operating Temperature Commercial (JD): 0℃ to +70℃; (13)Industrial (HP, JP, KP, LP): –40℃ to +85℃; (14)Storage Temperature (All Grades): –65℃ to +150℃; (15)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD2S82AKP features: (1)Monolithic (BiMOS ll)Tracking R/D Converter; (2)Ratiometric Conversion; (3)Low Power Consumption: 300 mW Typ; (4)Dynamic Performance Set by User; (5)Velocity Output; (6)ESD Class 2 Protection (2,000 V Min); (7)44-Lead PLCC Package; (8)10-, 12-, 14- and 16-Bit Resolution Set by User; (9)High Max Tracking Rate 1040 RPS (10 Bits); (10)VCO Output (Inter LSB Output); (11)Data Complement Facility; (12)Industrial Temperature Range.

Diagrams

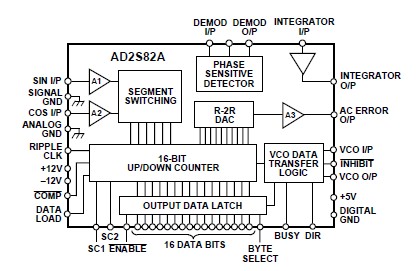

AD2S82AKP pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD2S82AKP
AD2S82AKP
Analog Devices Inc
IC R/D CONV TRACKING 44PLCC
Data Sheet
1-1: $137.72
AD2S82AKP-REEL
AD2S82AKP-REEL
Analog Devices Inc
IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
Negotiable
AD2S82AKPZ-REEL
AD2S82AKPZ-REEL

IC CONV R/D MONO VAR RES 44PLCC
Data Sheet
0-500: $105.37
AD2S82AKPZ
AD2S82AKPZ

IC R/D CONV TRACKING 44PLCC
Data Sheet
0-1: $114.59
1-10: $109.06
10-100: $105.37
