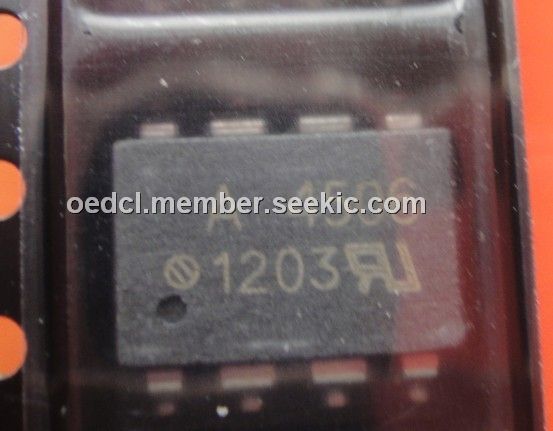

A4506

Intelligent Power Module and Gate Drive Interface Optocoupler, 1.0 A, 145 mW, 30 Volts, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: A4506

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:A4506
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

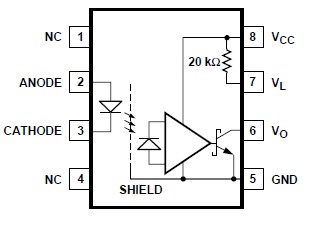

The A4506 is an intelligent power module and gate drive interface optocoupler. The A4506 contains an AlGaAs LED. The A4506 is optically coupled to an integrated high gain photo detector. Minimized propagation delay difference between devices make these optocouplers excellent solutions for improving inverter efficiency through reduced switching dead time. An on chip 20 kW output pull-up resistor can be enabled by shorting output pins 6 and 7, thus eliminating the need for an external pull-up resistor in common IPM applications. Specifications and performance plots are given for typical IPM applications.

Parametrics

A4506 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Operating Temperature TA: -40 to 100 ℃; (3)Average Input Current[1] IF(avg): 25 mA; (4)Peak Input Current[2] (50% duty cycle, £ 1 ms pulse width)IF(peak): 50 mA; (5)Peak Transient Input Current (<1 ms pulse width, 300 pps)IF(tran): 1.0 A; (6)Average Output Current (Pin 6)IO(avg): 15 mA; (7)Resistor Voltage (Pin 7)V7: -0.5 to VCC Volts; (8)Output Voltage (Pin 6-5)VO: -0.5 to 30 Volts; (9)Supply Voltage (Pin 8-5)VCC: -0.5 to 30 Volts; (10)Output Power Dissipation PO: 100 mW; (11)Total Power Dissipation PT: 145 mW.

Features

A4506 features: (1)Performance Specified for Common IPM Applications over Industrial Temperature Range: -40℃ to 100℃; (2)Fast Maximum Propagation Delays tPHL = 400 ns tPLH = 550 ns; (3)Minimized Pulse Width Distortion (PWD = 450 ns); (4)15 kV/ms Minimum Common Mode Transient Immunity at VCM = 1500 V; (5)CTR > 44% at IF = 10 mA; (6)UL Recognized - 2500 V rms for 1 minute (5000 V rms for 1 minute for HCNW4506 and HCPL-4506 Option 020)per UL1577; (7)CSA Approved; (8)VDE 0884 Approved; (9)VIORM = 630 V peak for HCPL-4506 Option 060; (10)VIORM = 1414 V peak for HCNW4506; (11)BSI Certified (HCNW4506).
