Product Summary
The A43L2616V-7 is a 67,108,864 bits synchronous high data rate Dynamic RAM. It is organized as 4×1,048,576 words by 16 bits, fabricated with AMIC’s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
Parametrics
A43L2616V-7 absolute maximum ratings: (1)Voltage on any pin relative to VSS (Vin, Vout ): -1.0V to +4.6V; (2)Voltage on VDD supply relative to VSS (VDD, VDDQ ): -1.0V to +4.6V; (3)Storage Temperature (TSTG): -55℃ to +150℃; (4)Soldering Temperature × Time (TSLODER): 260℃×10sec; (5)Power Dissipation (PD): 1W; (6)Short Circuit Current (Ios): 50mA.
Features
A43L2616V-7 features: (1)JEDEC standard 3.3V power supply; (2)LVTTL compatible with multiplexed address; (3)All inputs are sampled at the positive going edge of the system clock; (4)Burst Read Single-bit Write operation; (5)DQM for masking; (6)Auto & self refresh; (7)64ms refresh period (4K cycle); (8)54 Pin TSOP (II); (9)Low Self Refresh Current version for –V grade.

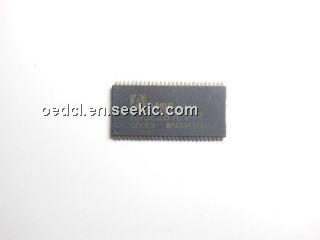

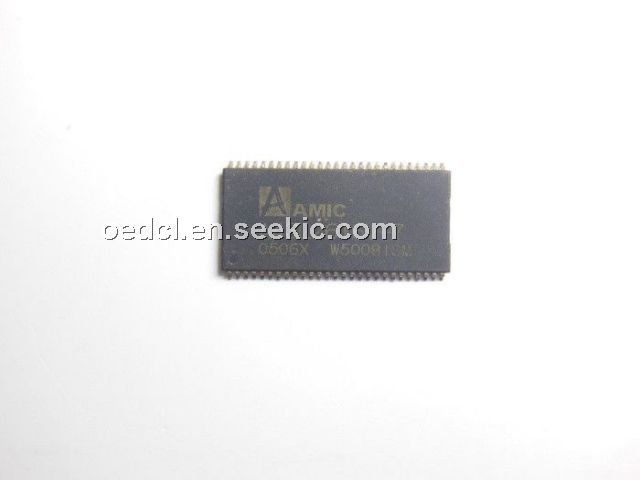

Diagrams
