Product Summary

The 82CNQ030A is a Schottky rectifier. The 82CNQ030A center tap Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

Parametrics

82CNQ030A absolute maximum ratings: (1)Max. Average Forward Current: 80A; (2)Max. Peak One Cycle Non-Repetitive: 5100A; (3)Surge Current: 880A; (4)Non-Repetitive Avalanche Energy: 36mJ; (5)Repetitive Avalanche Current: 8A.

Features

82CNQ030A features: (1)Supply voltage Vcc: 24V; (2)Operating junction temperature Tjopr: –40 to +150℃; (3)VREF output voltage VREF: 5.0V ±3%; (4)UVLO operation start voltage VH: 10.5V ± 0.7V; (5)UVLO operation shutdown voltage VL: 9.3V ± 0.5V; (6)UVLO hysteresis voltage Hysuvl: 1.2V ±0.5V; (7)Boost converter control with critical conduction mode; (8)Interleaving control; (9)Feedback loop open detection; (10)Master and Slave independence overcurrent protection; (11)280 μs restart timer; (12)Package lineup: Pb-free SOP-16/DILP-16.

Diagrams

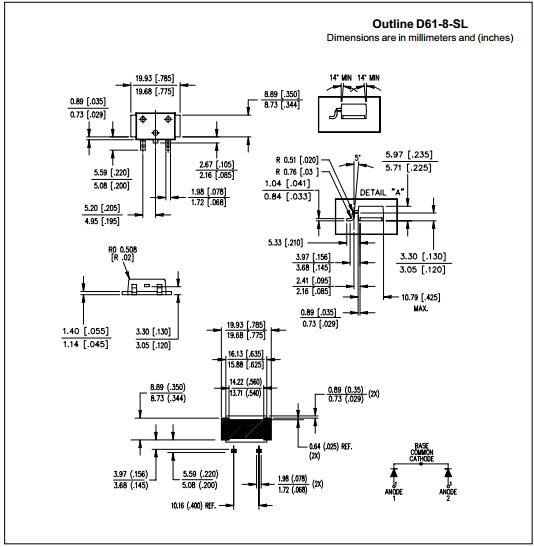

82CNQ030A dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
82CNQ030A
82CNQ030A
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 80 Amp 30 Volt Common Cathode
Data Sheet
0-127: $8.89
127-200: $8.38
200-500: $8.14
82CNQ030APBF
82CNQ030APBF

DIODE SCHOTTKY 30V 40A D61-8
Data Sheet
0-1: $9.35
1-10: $8.51
10-25: $7.87
25-100: $7.23
100-250: $6.59
250-500: $6.17
500-1000: $5.66
1000-2500: $5.42
2500-5000: $5.27
82CNQ030ASL
82CNQ030ASL
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 80 Amp 30 Volt Common Cathode
Data Sheet
0-172: $10.50
172-200: $10.08
200-400: $9.67
82CNQ030ASM
82CNQ030ASM
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 80 Amp 30 Volt Common Cathode
Data Sheet
0-259: $6.86
259-400: $6.42
400-800: $5.89
