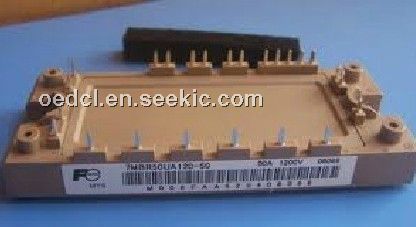

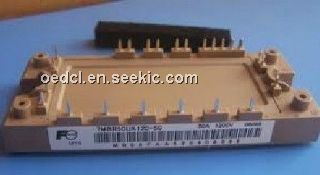

Product Summary

The 7MBR25UA120 is an IGBT module. The applications of it are Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR25UA120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current Continous at TC=25℃: 25A; (4)Collector current Continous at TC=80℃: 15A; (5)Collector current 1ms at TC=25℃: 30A; (6)Collector current 1ms at TC=80℃: 25A; (7)Collector power disspation: 115W; (8)Collector-Emitter voltage: 1200V; (9)Gate-Emitter voltage: ±20V; (10)Repetitive peak reverse voltage: 1200V; (11)Repetitive peak reverse voltage: 1600V; (12)Average output current 50Hz/60Hz sine wave: 25A; (13)Surge current (Non-Repetitive): 260A.

Features

7MBR25UA120 features: (1)Low VCE(sat); (2)Compact Package; (3)P.C. Board Mount Module; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

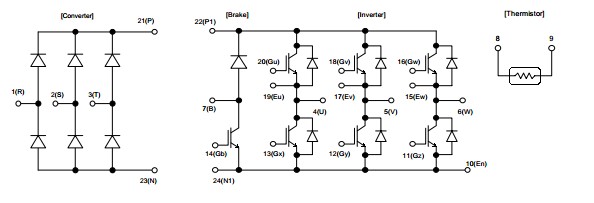

7MBR25UA120 circuit diagram
