Product Summary

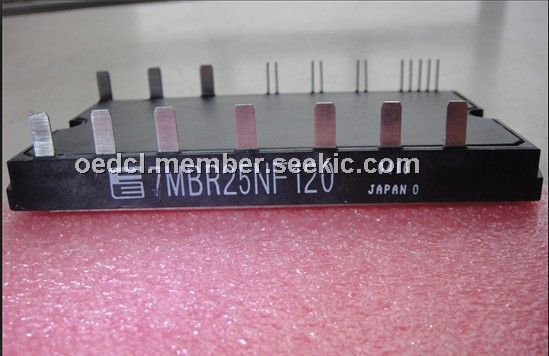

The 7MBR25NF120 is a PIM. Applications of the 7MBR25NF120 are inverter for motor drive , AC, DC, AC and DC servo drive amplifier uninterruptible power supply.
Parametrics
7MBR25NF120 absolute maximum ratings: (1)VcES: 1200V; (2)VcES: ±20V; (3)lc: 25A; (4)lc pulse: 50A; (5)- lc: 25A; (6)Pc: 200W; (7)VcES: 1200V; (8)Vges: ±20V; (9)lc: 15A; (10)lc Pulse: 30A; (11)Pc: 90W; (12)Vrrm: 1200V; (13)If <av): 1A; (14)Iksm 10ms: 50A; (15)Vrrm: 1600V; (16)Vrsm: 1700V; (17)lo 50/60HZ IE5S/S: 25A; (18)Ifsm Tj = 150℃ 10ms: 320A; Tj= 150℃ 10ms: 512A2s; (19)Ti: + 150℃; (20)Tstg: -30- + 125℃ ; (21)Vlso AC : lmin.: AC2500V.
Features
7MBR25NF120 features: (1)high speed switching; (2)voltage drive; (3)low inductance module structure; (4)converter diode bridge dynamic brake circuit.
Diagrams
 |
