Product Summary

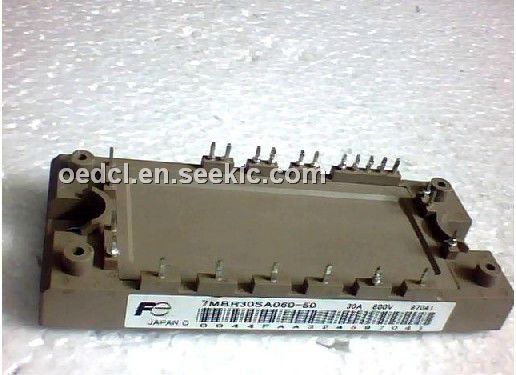

The 7MBR20SA060-70 is a Power Integrated Module.

Parametrics

7MBR20SA060-70 absolute maximum ratings: (1)Collector-emitter volateg, VCES: 600V; (2)GTate-emitter voltage, VGES: ±20V; (3)Collector current, IC, continuous: 20A; Icp, ims: 40A; -Ic: 20A; (4)Collector power dissipation, PC, 1 device: 80W; (5)Junction temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃; (7)Isolation voltage, VISO: 2500V.

Features

7MBR20SA060-70 features: (1)Collector current, ICES: 1.0mA; (2)Gate-emitter leakage current, IGES: 200nA; (3)Gate-emitter threshold voltage, VGE: 5.5 to 8.5V; (4)Collector-emitter saturation voltage, VCE: 1.95 to 2.4V; (5)Input capacitance, Cies: 3000pF.

Diagrams

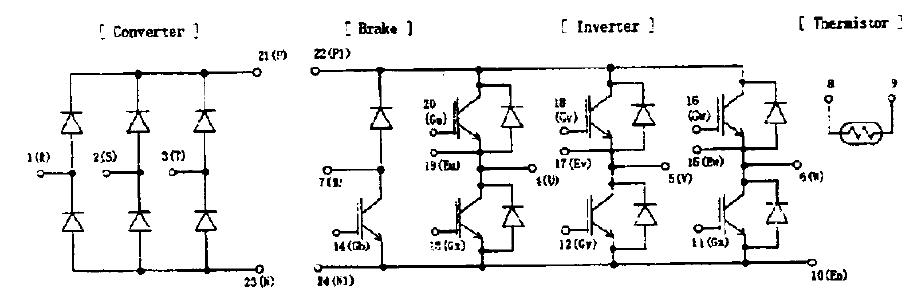

7MBR20SA060-70 block diagram
