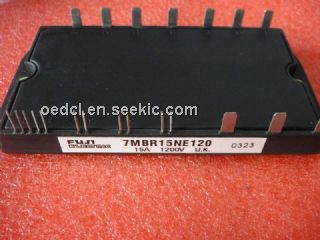

The 7MBR15NE120 is an IGBT module. The applications of the 7MBR15NE120 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier and Uninterruptible Power Supply.
Parametrics
7MBR15NE120 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current: 15A; (4)Collector power disspation: 120W; (5)Collector-Emitter voltage: 1200V; (6)Gate-Emitter voltage: ±20V; (7)Collector current: 10A; (8)Collector power disspation: 88W; (9)Repetitive peak reverse voltage: 1200V; (10)Average forward current: 1A; (11)Surge current: 50A; (12)Repetitive peak reverse voltage: 1600V; (13)Non-Repetitive peak reverse voltage: 1700V; (14)Average output current: 25A; (15)Surge current (Non-Repetitive): 320A; (16)Operating junction temperature: 150℃; (17)Storage temperature: -40 TO +125℃.
Features
7MBR15NE120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.
